SMART I/O User’s Manual
March 12, 1996
©1996 PEP Modular Computers GmbH
Page 2 - 20
Chapter 2 SMART-BASE
2.6.3 SMTsettout
Syntax
error_code SMTsettout(u_int8 mode);
Description
This function sets the timer output (TOUT) control.
Input
u_int8 mode
Two modes of TOUT control are available. They are:
MODE_PORTC
tout has the Simple I/O function.
MODE_SQUARE
tout toggles on counter zero.

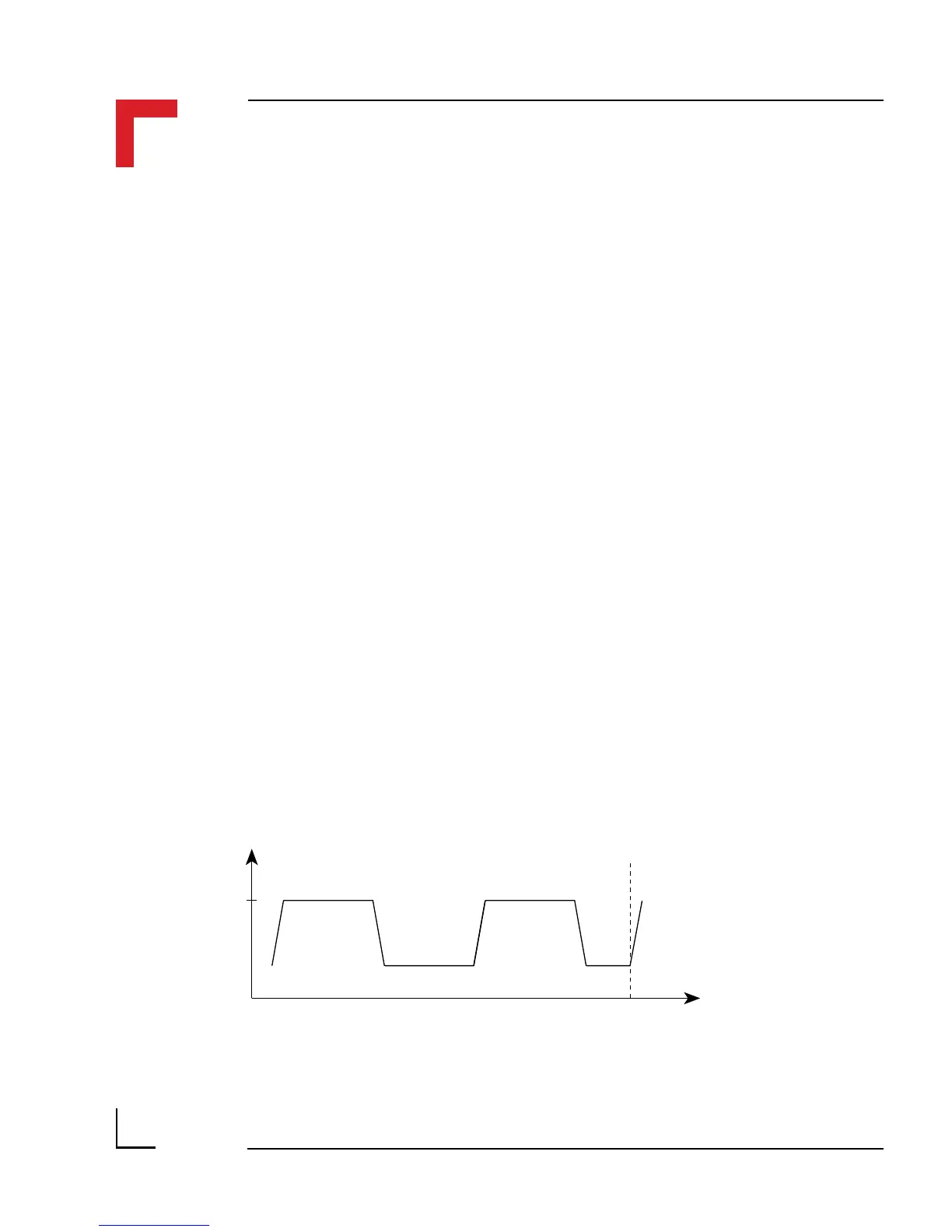

When the timer is stopped, tout is high (see diagram).
Output
error_code SUCCESS
E_BMODE
Unsupported mode
or standard OS-9 error code (refer to the OS-9
Technical Manual Error Codes Section).
Example
RetVal = SMTsettout(MODE_SQUARE);
T
OUT
OFF
ON
Timer
Stop
t
The high state of TOUT illustrated in the above diagram shows that the
output is deactivated i.e. OFF. Only when TOUT is in the low state can a
load be driven.
