Chapter 5 Analog Modules
5.1.7 Pinouts
Screw Terminal Pinouts

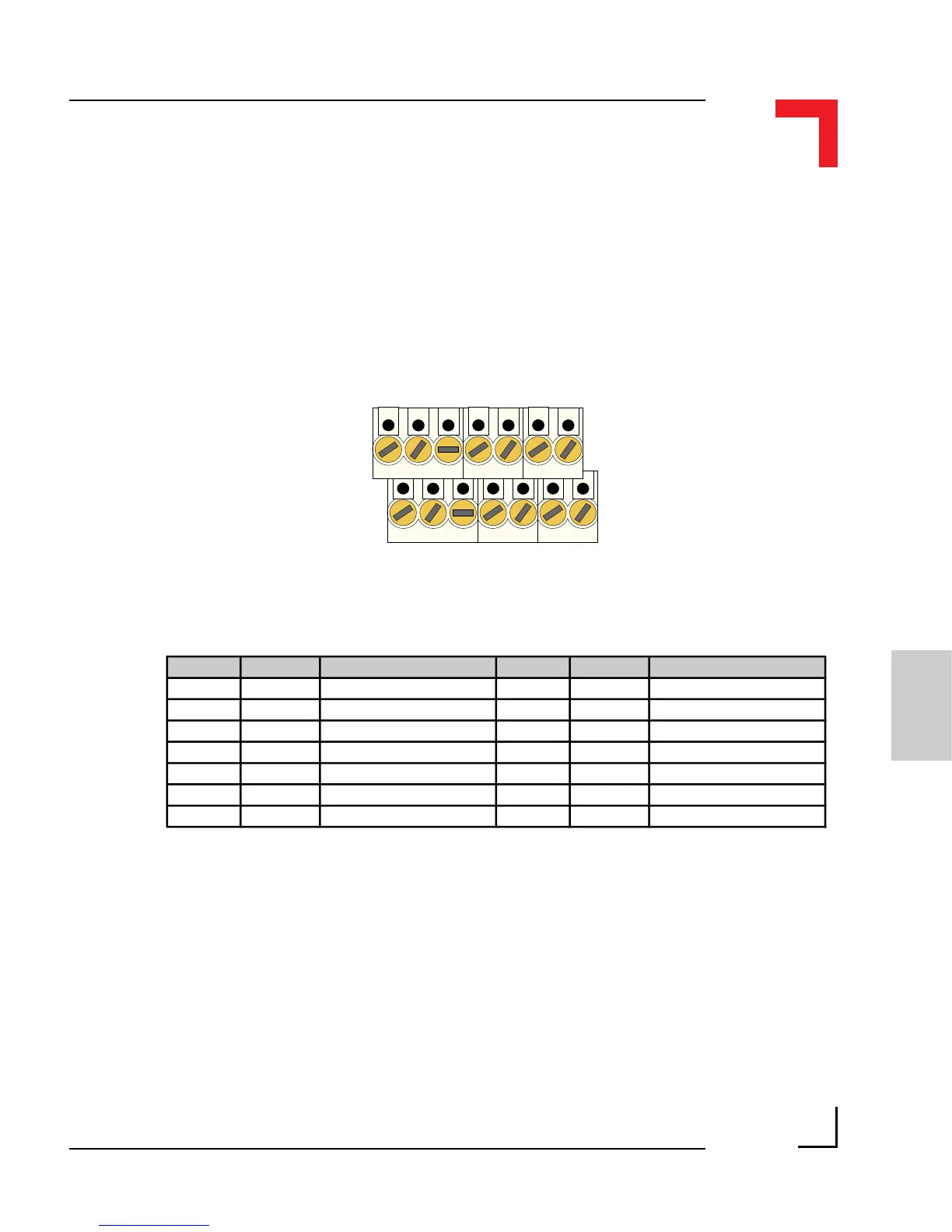

The following shows the pinout/signal relationship for the SM-DAD1 when
connected to a particular screw terminal block.
Pin 1
Pin 2
Pin 13
Pin 14
Pin Nr. Signal Description Pin Nr. Signal Description
1 IN0P (+) Analog Input Ch. 0+ 2 IN2P (+) Analog Input Ch. 2+
3 IN0N (-) Analog Input Ch. 0- 4 IN2N (-) Analog Input Ch. 2-
5 AGND Analog GND 6 AGND Analog GND
7 IN1P (+) Analog Input Ch. 1+ 8 IN3P (+) Analog Input Ch. 3+
9 IN1N (-) Analog Input Ch. 1- 10 IN3N (-) Analog Input Ch. 3-
11 VOUT0 Analog Output Ch. 0 12 VOUT1 Analog Output Ch. 1
13 AGND Analog GND 14 AGND Analog GND
