SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
A2 System components

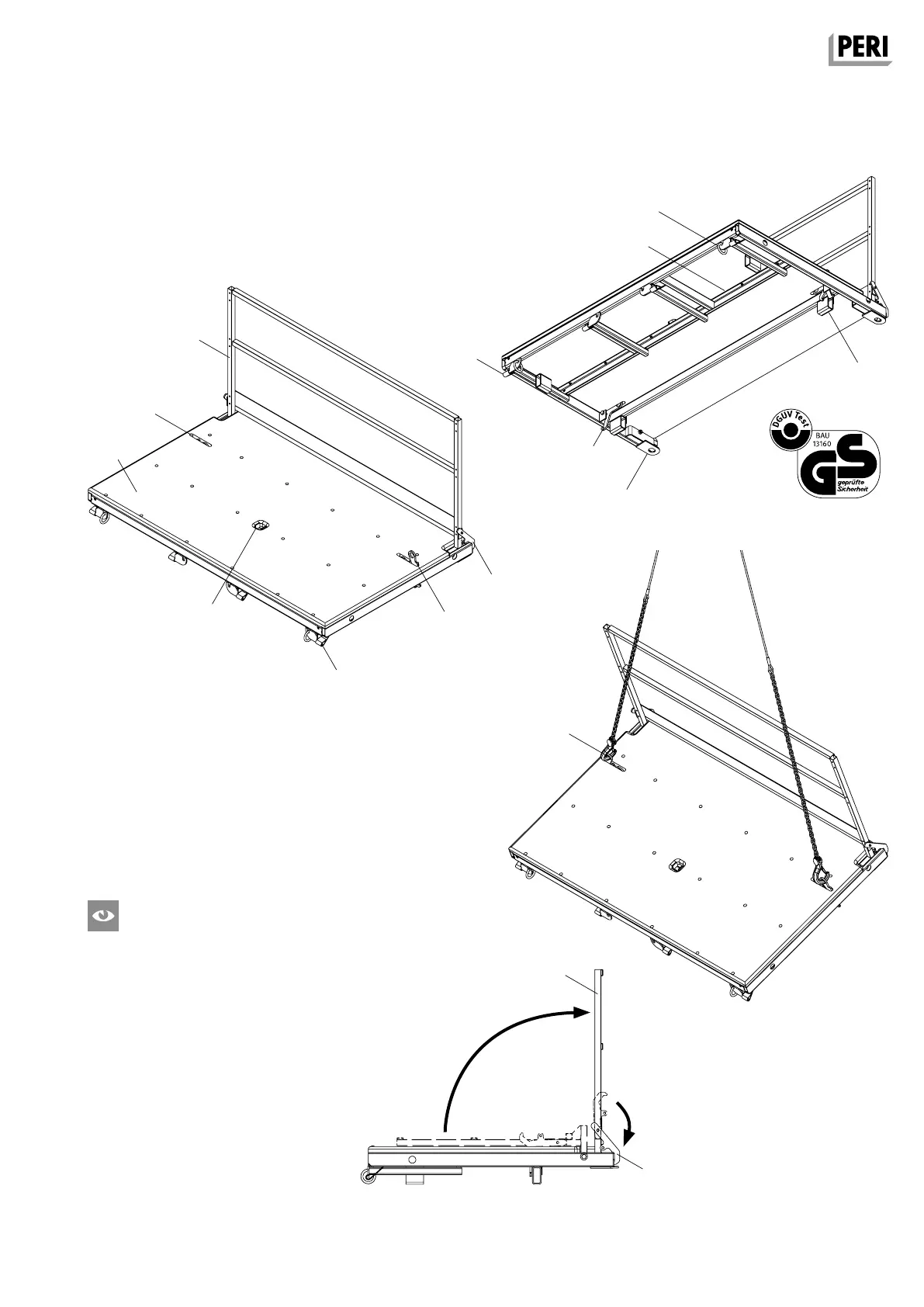

Abb. A2.08
Stacking base
Slide
Internal crane eye,
retracted
External crane eye
Frame
External crane eye
Handrail
Decking
Box out for shutter-
ing aid
Slide
Securing lever
Internal crane eye,
raised
SKYDECK Platforms SDB
SKYDECK Platform SDB 150
SKYDECK Platform SDB 225
SKYDECK Platform SDB 300
Fig. A2.09
Fig. A2.10
Internal crane eye
Internal crane
eye, retracted
Preparation for Use:
Take individual platforms from the stack,
fold open the handrail and the securing
lever drops down and secures it in a
vertical position. (Fig. A2.09)
Is the securing lever engaged? Other-
wise it may be necessary to secure it by
hand.
For transportation by crane, the plat-
form is attached to the concealed crane
eyes with the two-sling lifting gear.
(Fig. A2.10)
Handrail
Securing lever
