3-3

Section 3

Dimensions

CAB TILT

Model 220 W/19.5 Tires

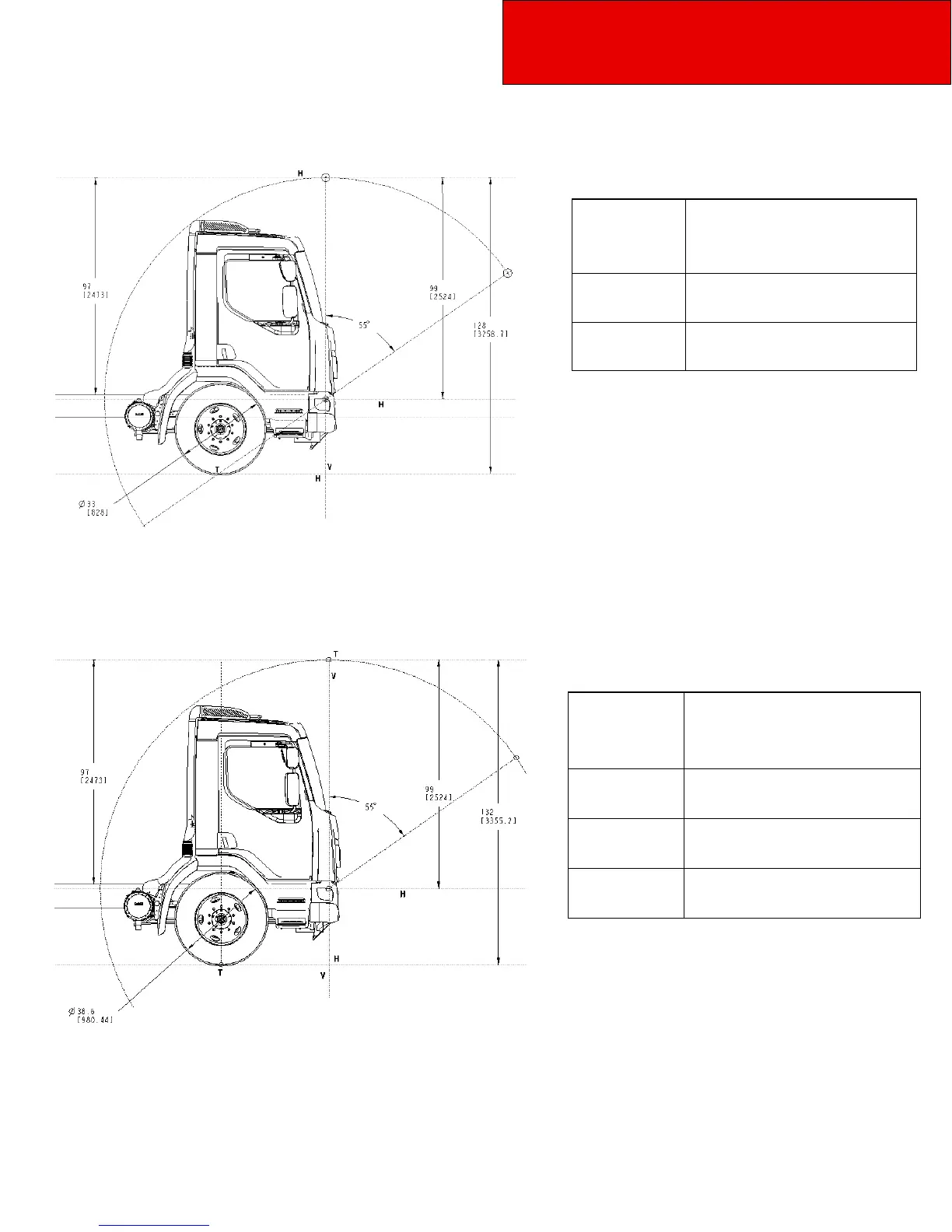

Figure 3-1.1 Side View —Model 220 W/19.5 Tires Cab Tilt Height and Pivot

location Measurement

Model 220 W/22.5 Tires

Figure 3-1.2 Side View —Model 220 W/22.5 Tires Cab Tilt Height and Pivot

location Measurement

Table 3-4 Cab Pivot location

Behind CAB

Pivot location

Above FOF

44.5MM

209MM

CTR-CTR

978MM

Table 3-3 Cab Tilt Height

CAB Tilt

Highest point inches (mm)

220 W/19.5

Tires

128 (3258.7)

220 W/22.5

Tires

132 (3355.2)
