Peterbilt 220 - Table 3-7.2 Battery Box Step and Cab Floor Measurements W; 22.5 Tires; Figure 3-4.2 Cab Floor: Side View, Left Side W; 22.5 Tires

3-11
Section 3
Dimensions
3 Dimensions
Detail Views
Left side: Chassis Heights – Model220 ction
3ions

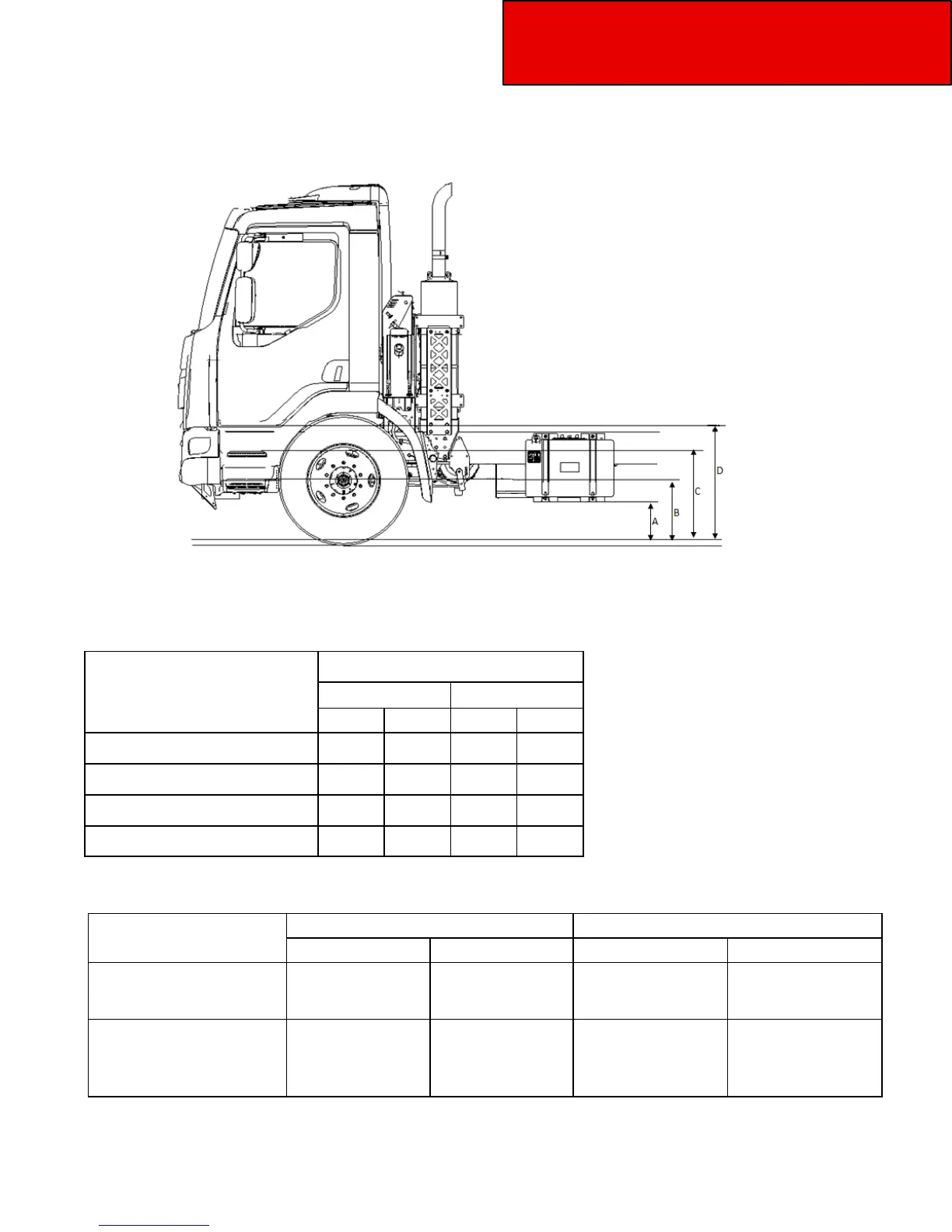

Figure 3-4.2 Cab Floor: Side View, Left Side w/ 22.5 Tires
Table 3-7.2. Battery Box Step and Cab Floor Measurements w/ 22.5 Tires
Position
Model 220 22.5 Tires
*Unladen
Laden
In
mm
In
mm
A FUEL SUPPORT
15.8
401
14.3
363
B FIRST STEP
18.4
467
16.9
430
C SECOND STEP FLOOR
32.7
830
31.2
794
D CABFLOOR
41.4
1051
39.9
1013
Table 3-8 Ground to Top of Frame Measurements
Frame Heights
LOADED inches (mm)
*UNLOADED inches (mm)
Front Axle
Rear Axle
Front Axle
Rear Axle
Model 220 W/19.5
(15.6 SLR)
31 (787)
32.5(825)
36 .1(916)
35.6 (905)
Model 220
W/ 11R-22.5
(19.4 SLR)
34.8 (884)
36.3 (922)
39.1(992)
38.6(980)
* Unloaded Dimensions are estimated.
