Peterbilt 220 - Figure 5-1.1 Horizontal Crossover DPF;SCR, LH Horizontal Tailpipe, RH BOC Rectangular Fuel Tank, RH BOC Rectangular DEF Tank and LH BOC Battery Box; Figure 5-1.2 Horizontal Crossover DPF;SCR, LH Horizontal Tailpipe, RH BOC Rectangular Fuel Tank, RHBOC Rectangular Fuel Tank, RH BOC Rectangular DEF Tank and LH BOC Battery Box

85 pages

Save Page as PDF

To Next Page

To Previous Page

5-2

Section 5

Frame Layouts and

Body

Mounting

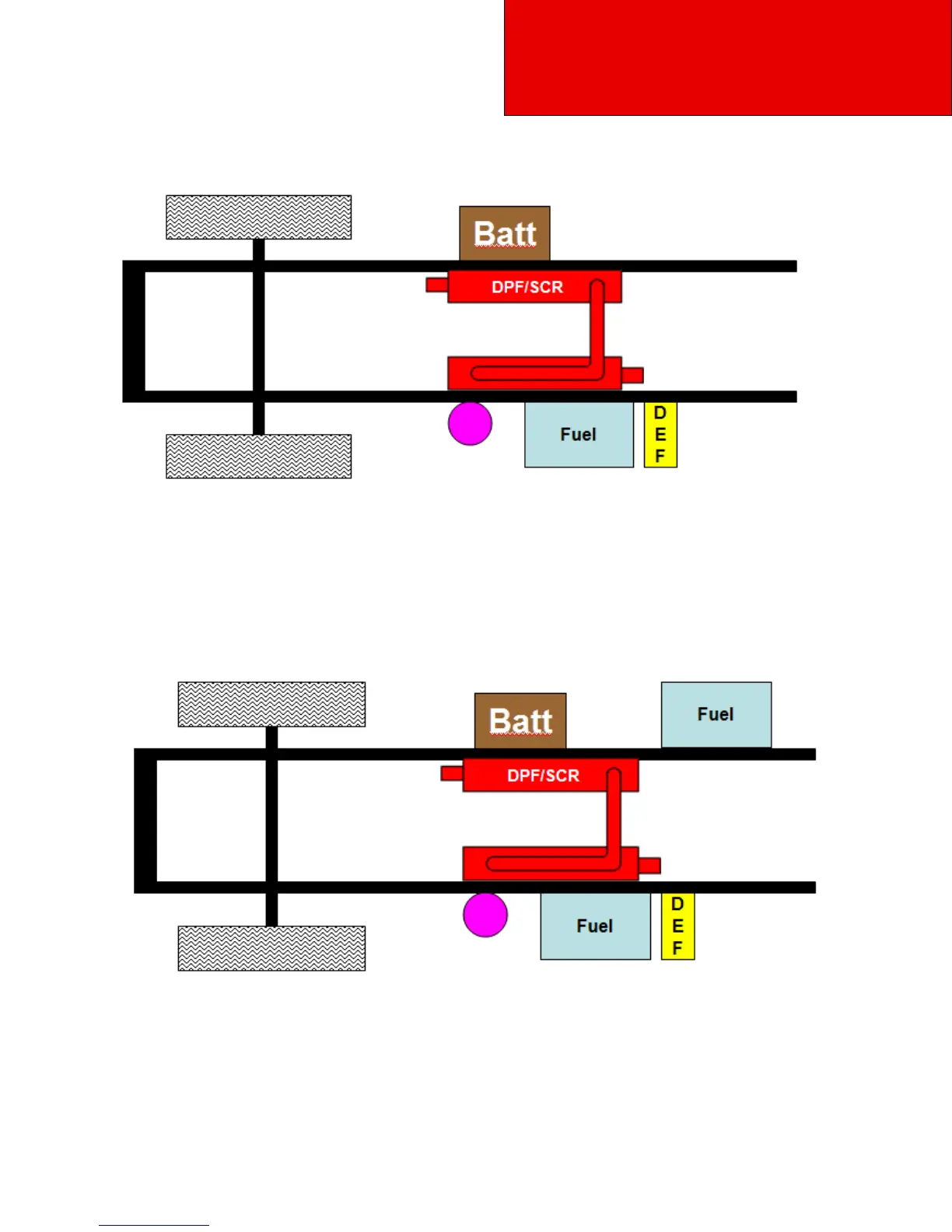

Figure 5-1.1 Horizontal Crossover DPF/SCR, LH horizontal tailpipe, RH BOC rectangular fuel tank, RH BOC

rectangular DEF tank and LH BOC battery box

Figure 5-1.2 Horizontal Crossover DPF/SCR, LH horizontal tailpipe, RH BOC rectangular fuel tank, RHBOC

rectangular fuel tank, RH BOC rectangular DEF tank and LH BOC battery box
