Peterbilt 220 - Figure 7-3 LF Euro 6 Cab Interface Names

To Next Page

To Previous Page

7-4

Section 7

El Electrical

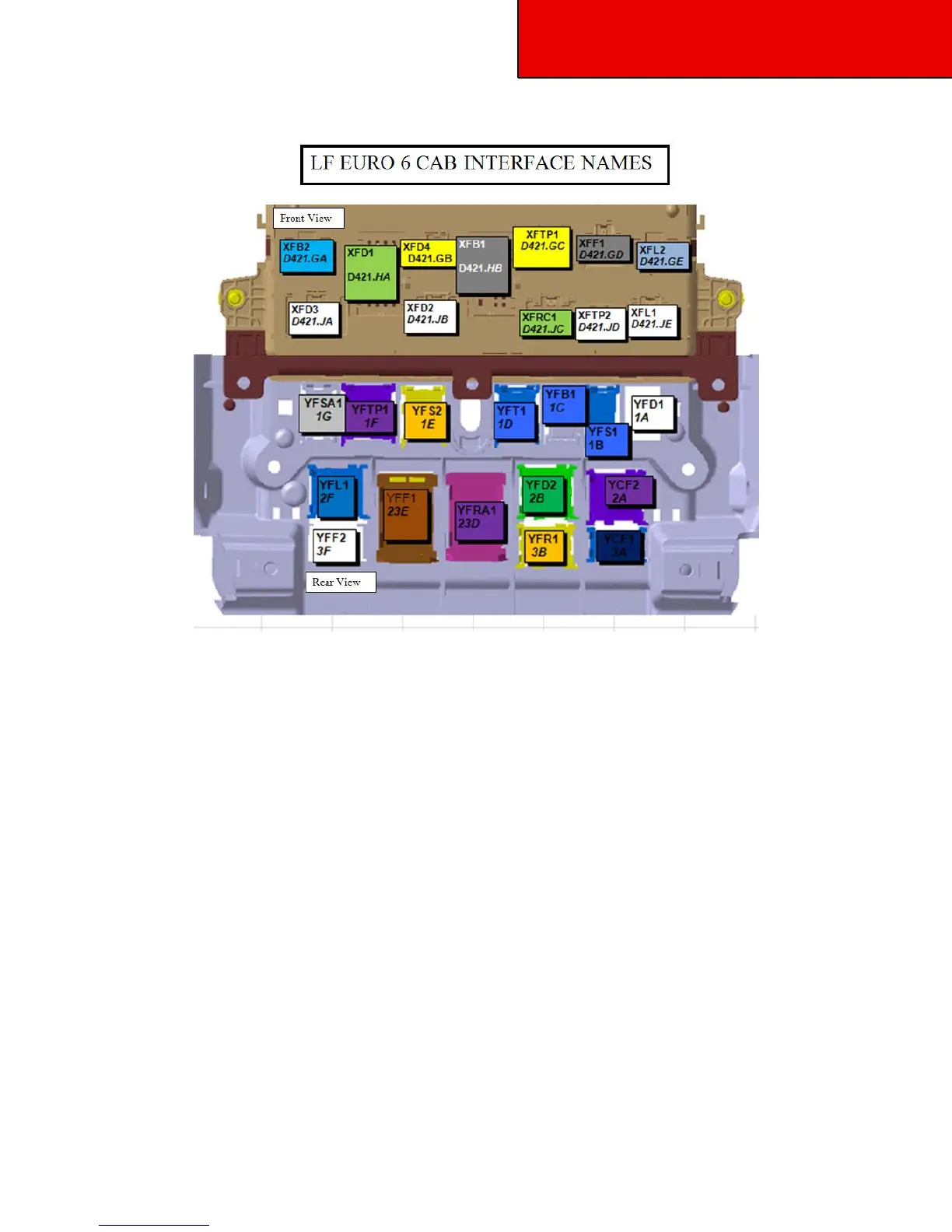

Figure 7-3 LF Euro 6 Cab Interface Names

The lower portion of this diagram is viewed from inside the cab.

The upper portion of this diagram is viewed from outside the cab.

The EJB contains both 24VDC and 12VDC circuitry for the vehicle. Contact the local Paccar Service Representative for the

appropriate circuitry identification if access to this panel is required.
