7-9

Section 7

Electrical

The output voltage from cab to chassis is 24V. The spare circuits in the PDC located in the battery box as described in

Table 7-1 are 12V.

Spare Cir-

cuit Pow-

ered

Through:

Minimum

Wire

Gauge

Circuit

PDC

Terminal

Capacity (Fuse

number/Amperes).

Install a fuse of

appropriate rating.

Numbered connector Location PDC

at battery box.

Spare 1

RG7

RH7

F20/10Amp

Red Connector (B068-7099-F)

Spare 2

RG7

RH7

F20/10Amp

Red Connector (B068-7099-F)

Table 7-1 Additional Spare Circuits for Wiring

On Power Distribution Center (chassis).

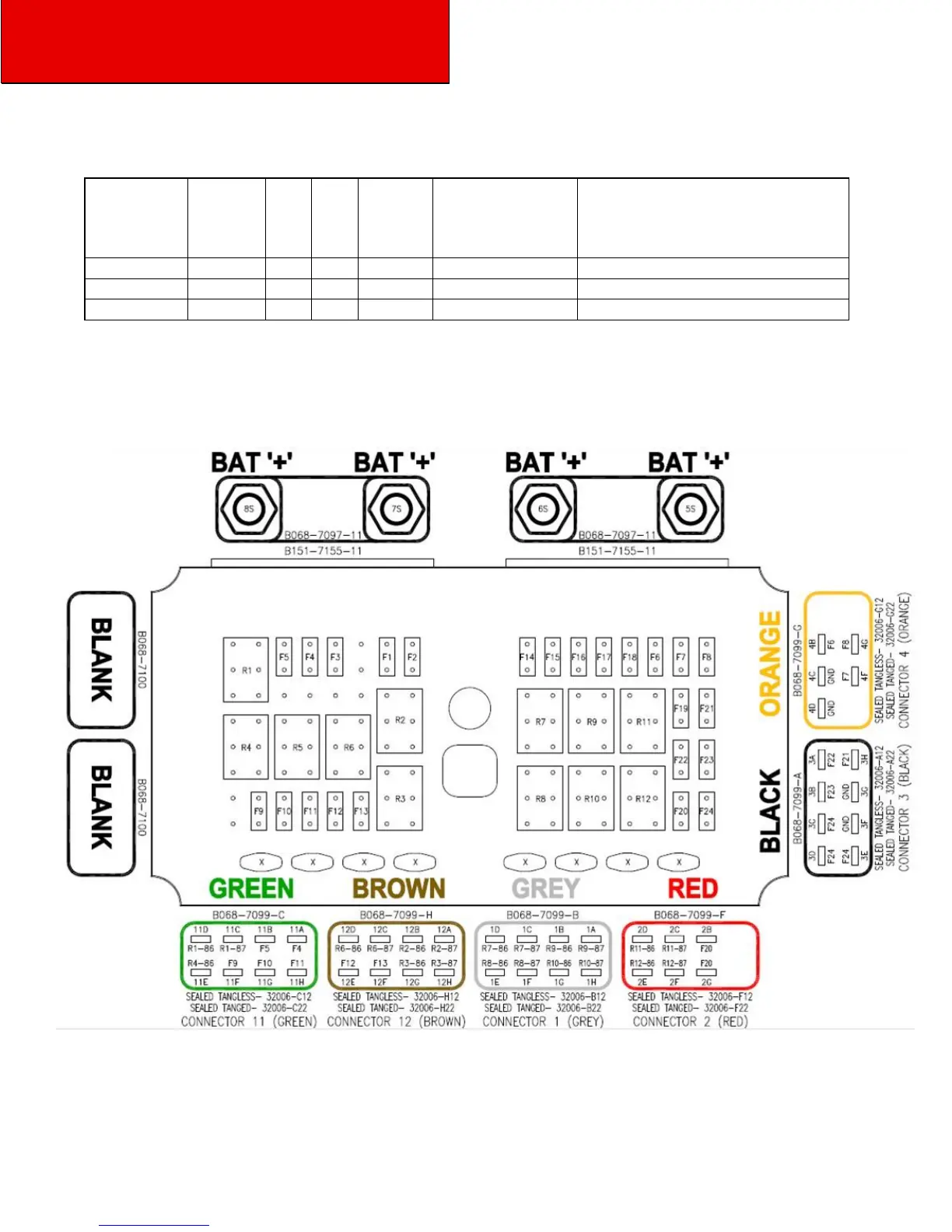

Figure 7-6.2 Power Distribution Center( Chassis)
