3-12

Section 3

Dimensions

Detail Views

Components Locations –Model 220

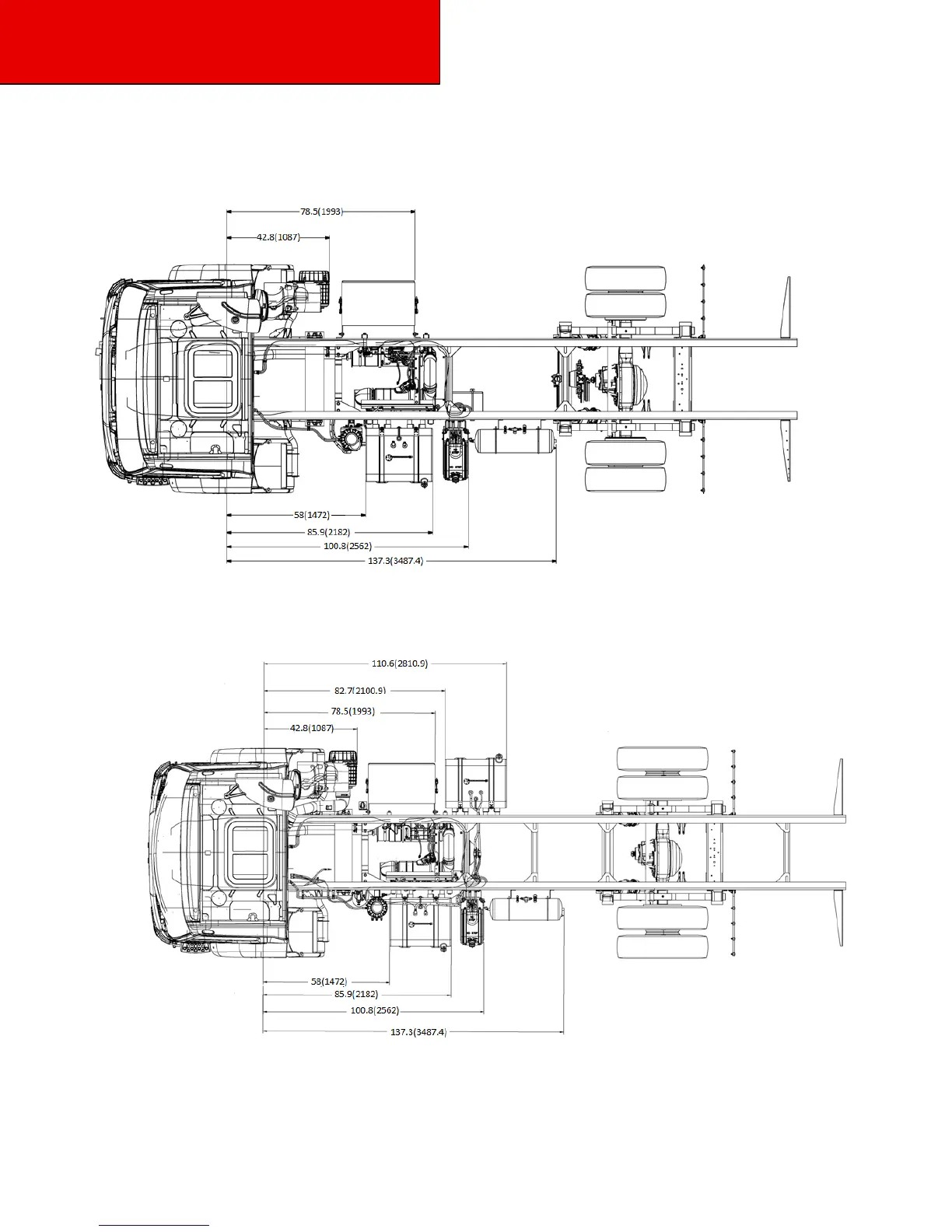

Figure 3-5.1 Model 220 W/22.5 Tires, Battery Box, Fuel Tank, Air Tank, DEF Tank and Crossmember

Location Measured From Front Axle: inches (mm).

Figure 3-5.2 Model 220 22.5 Tires, Battery Box, Dual Fuel Tanks, Air Tank, DEF Tank, and Crossmember

Location Measured from Front Axle: inches (mm).
