Peterbilt 220 - Page 26

To Next Page

To Previous Page

3-13

Section 3

Dimensions

3 Dimensions

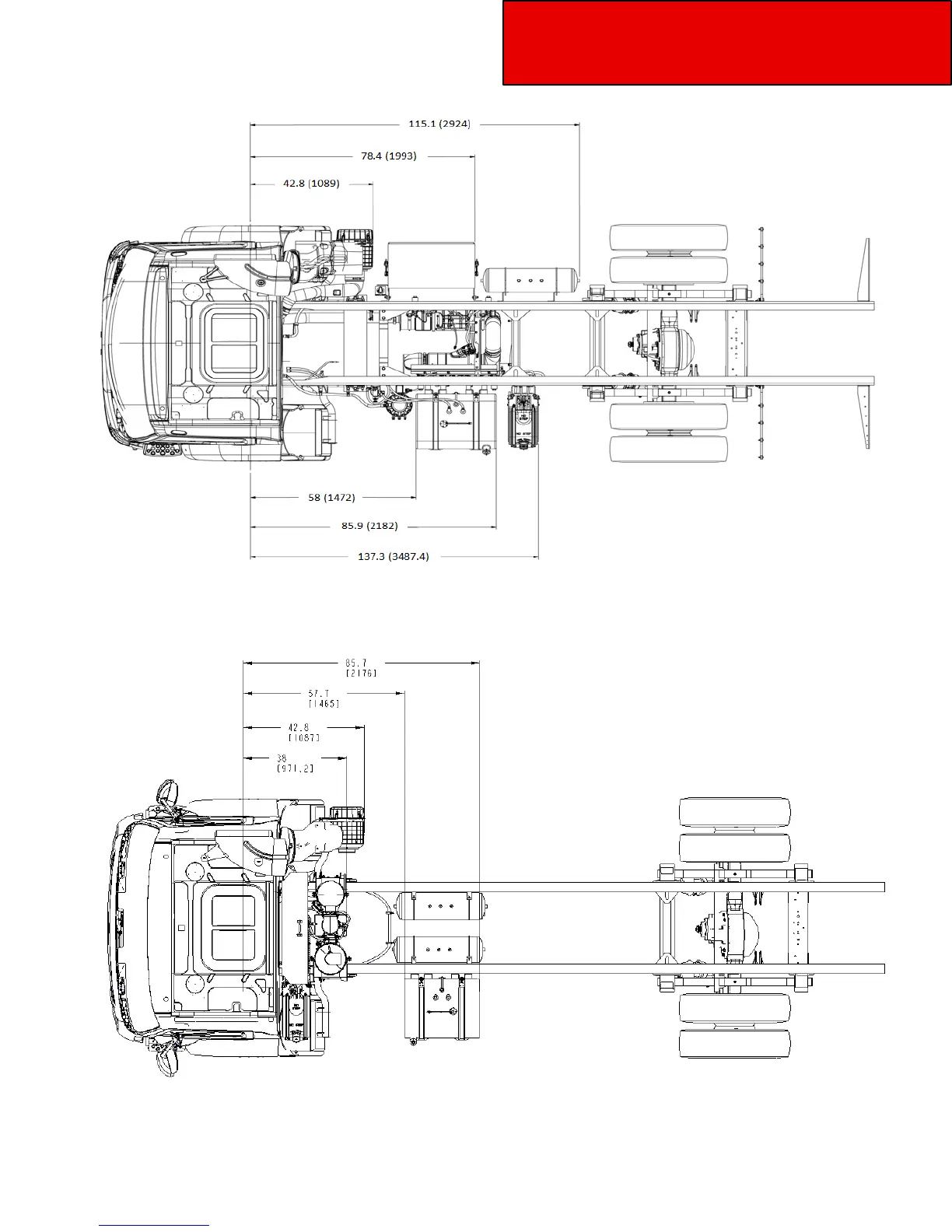

Figure 3-5.3 Model 220 22.5 Tires, Short Wheelbase, Air Tanks on the RH Side, Battery Box, DEF Tank and

Crossmember Location Measured from Front Axle: inches (mm).

Figure 3-5.4 Model 220 22.5 Tires, Clear Rail Package, Air Tanks, Battery Box, DEF Tank and

Crossmember Location Measured from Front Axle: inches (mm).
