Peterbilt 220 - Data Bus Communication

7-2
Section 7
Electrical
Data Bus Communication
WARNING! The Data Buss for the communication between electronic control
units must adhere to the guidelines outlined under SAE J1939 documentation. The
Euro 6 LFNA Model has multiple CAN(Controller Area Networks) busses and care
must be taken if an interface is required. Please contact the local Paccar Service
Representative for appropriate assistance and information.

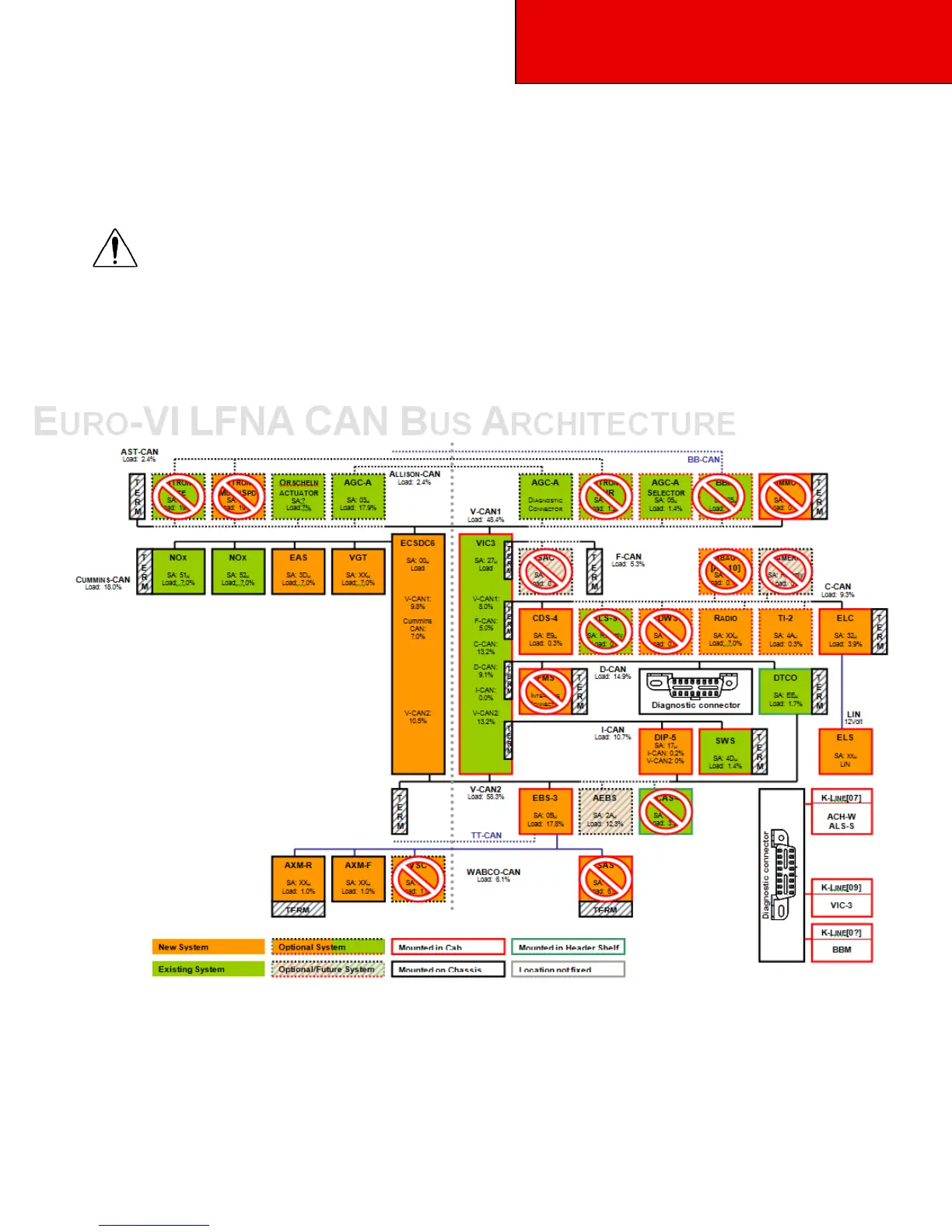

Figure 7-2 Data Bus Communication Architecture
