GENERAL EXHAUST INFORMATION

Peterbilt will offer a DPF and SCR exhaust system on Model 220 chassis, which is a Horizontal Crossover system for

Model 220 models where DPF, SCR and tailpipe are installed side by side with

LH horizontal tailpipe.

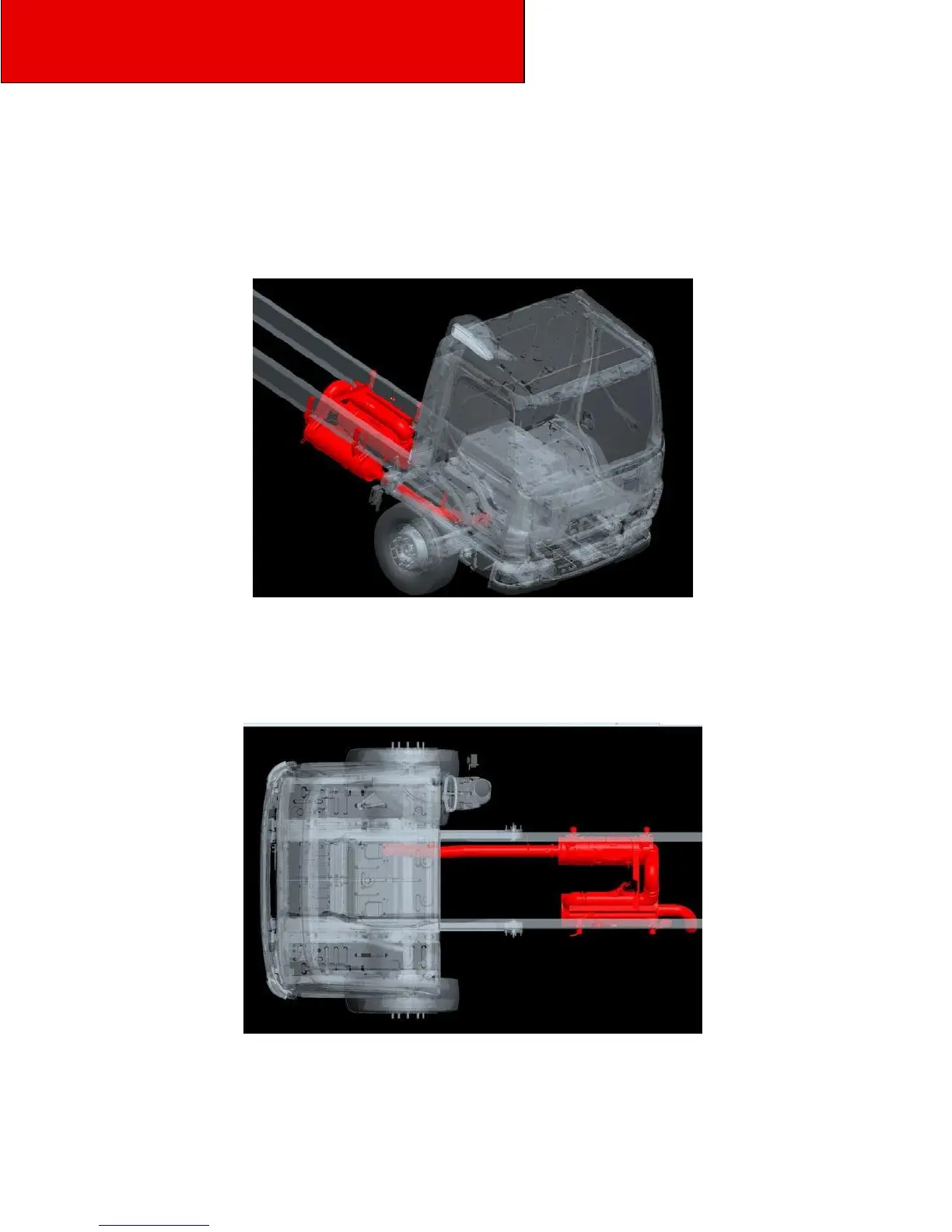

Figure 4-6.1 Horizontal Crossover DPF and SCR with Horizontal Tailpipe

Figure 4-6.2 Top view of Horizontal Crossover DPF and SCR with Horizontal Tailpipe
