7-10

Section 7

Electrical

Body Builder 9 pin connector

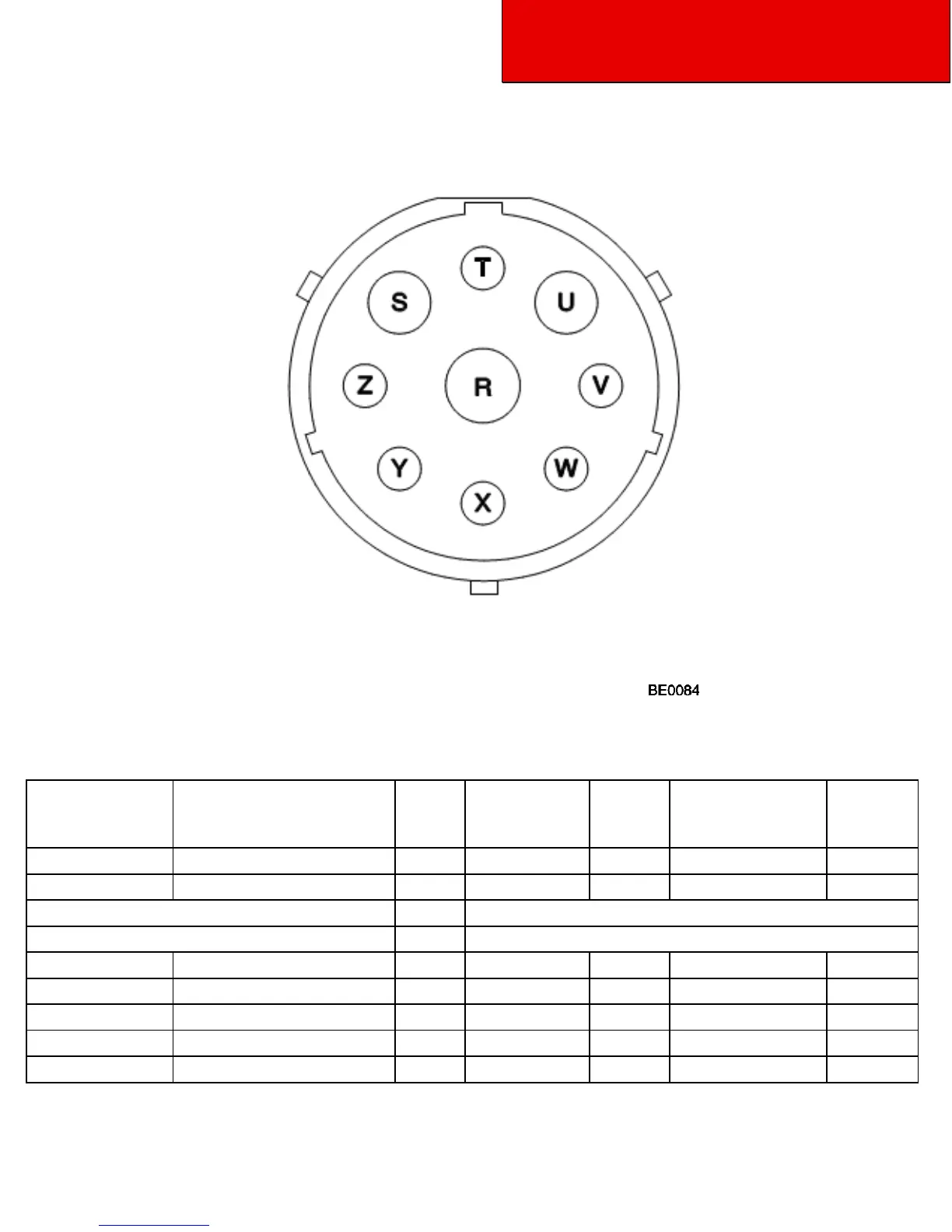

Figure 7-7 Body Builder 9 Pin Connector

The connector shown above is available for exterior lighting functions in addition to lighting circuits at the end of frame.

Table 7-2 Body Builder 9 Pin Connector

WIRE

DESCRIPTION

FUNCTION

CIRCUIT

WIRE

COLOR

CAPACITY FUSE

(AMPERES

NUMBER)

WIRE

GAUGE

GND

Ground

WHT2400

White

Stop LP

Stop lamp

YEL2601

Yellow

F18 / 25A

Not Connected

Tails/Marker LP

Tails / markers lamps

YEL2422

Yellow

F19 / 20A

Turn RH rear

Turn signal right hand rear

YEL2007

Yellow

F15 / 15A

Backup LP

Backup lamp

YEL2960

Yellow

TCU Relay

Turn LH rear

Turn signal left hand rear

YEL2006

Yellow

F14 / 15A

Markers LP

Markers lamps

YEL2412

Yellow

F19 / 20A
