7-14

Section 7

Electrical

Remote PTO / Throttle Harness

This option provides a connection from the engine ECU to the end of the frame to fit the engine throttle remote control and

PTOs. Controls are not provided. A 12-pin Deutsch connector (Deutsch P/N DT06-12SA-P012) is included.

Adding Electrical Options

WARNING!

Follow the engine manufacturer’s guidelines for use of these circuits. See your engine manufacturer to verify that the engine is

programmed correctly for the intended applications. Failure to properly program the engine or wire these circuits could cause an

accident.

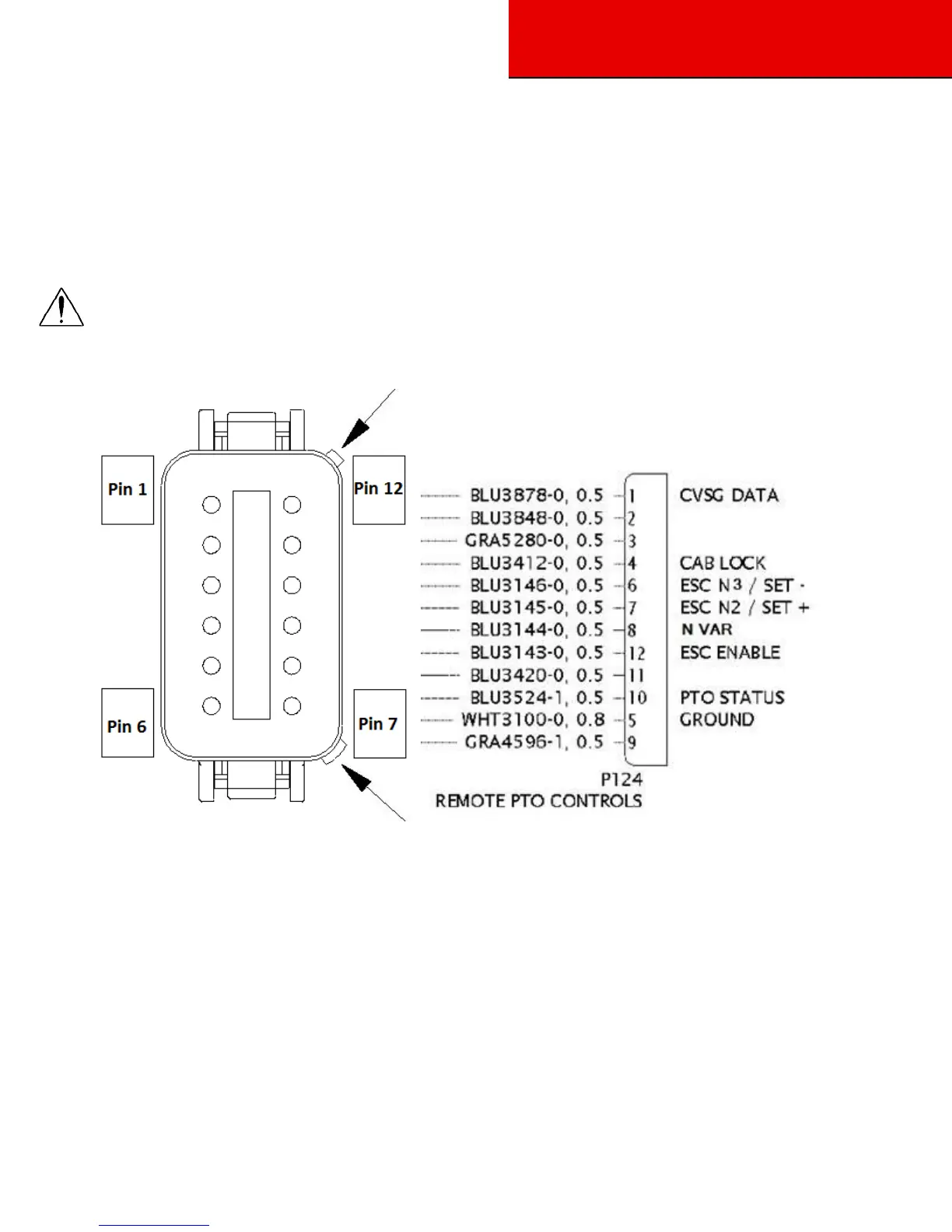

Figure 7-9 A 12-pin Deutsch connector and remote PTO Control
