3-16

Section 3

Dimensions

Frame Rail Configurations

Model 220

10-1/4 STEEL RAIL

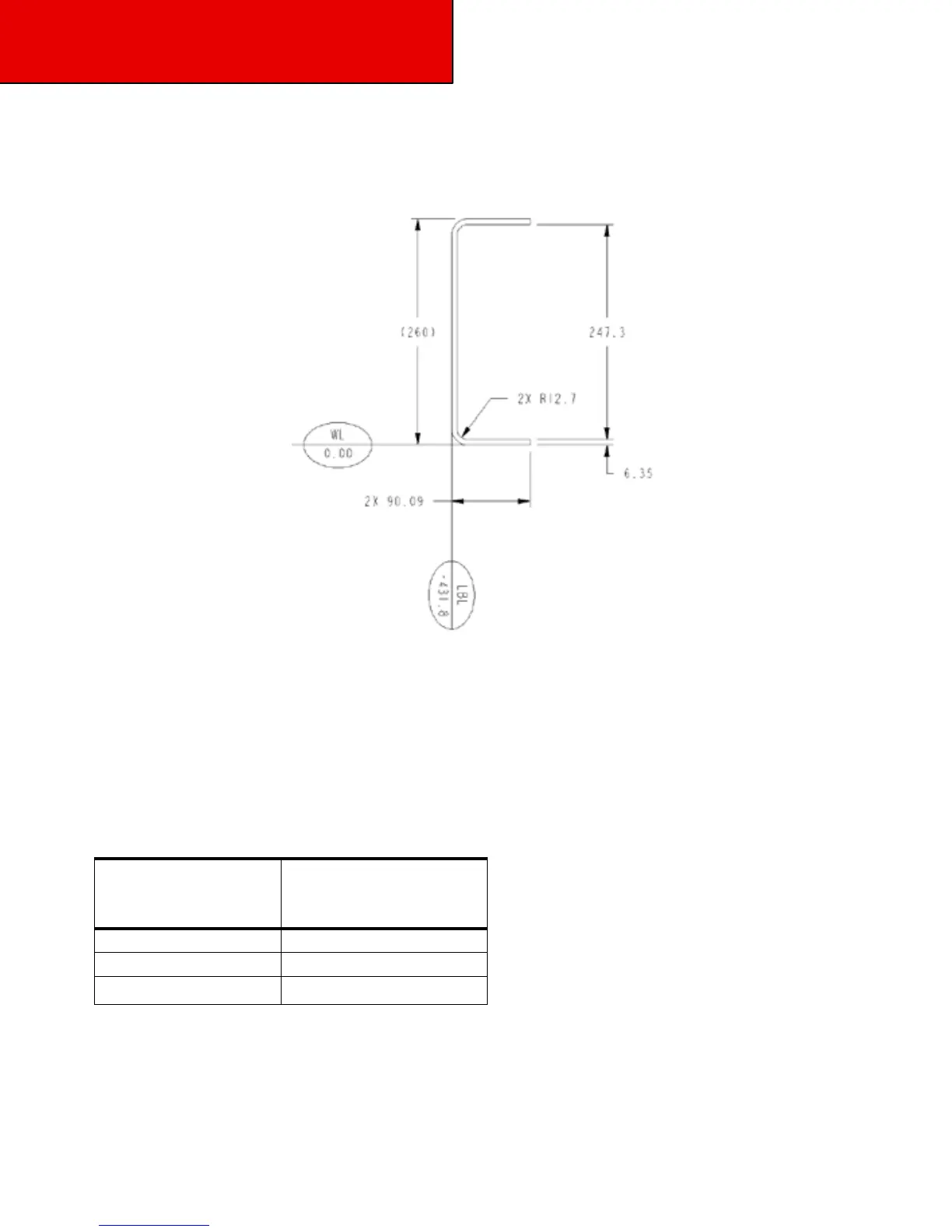

Figure 3-7 Model 220 Rail Measurements

Table 3-10 Frame Rail Strength Characteristics

RAIL

STRENGTH

10.25” Rail

(Per Rail)

Yield Strength, PSI

120,000

Section Modulus, in

11.65

RBM, Lbs-Inch

1,398,664
