Section 3
Dimensions
OVERALL DIMENSIONS
This section includes drawings of the base Model 220, which includes:
On the pages that follow, detail drawings show particular views of each component of the vehicle. They illustrate important
measurements critical to designing bodies of all types. See the “Contents” at the beginning of the manual to locate the drawing
you need.

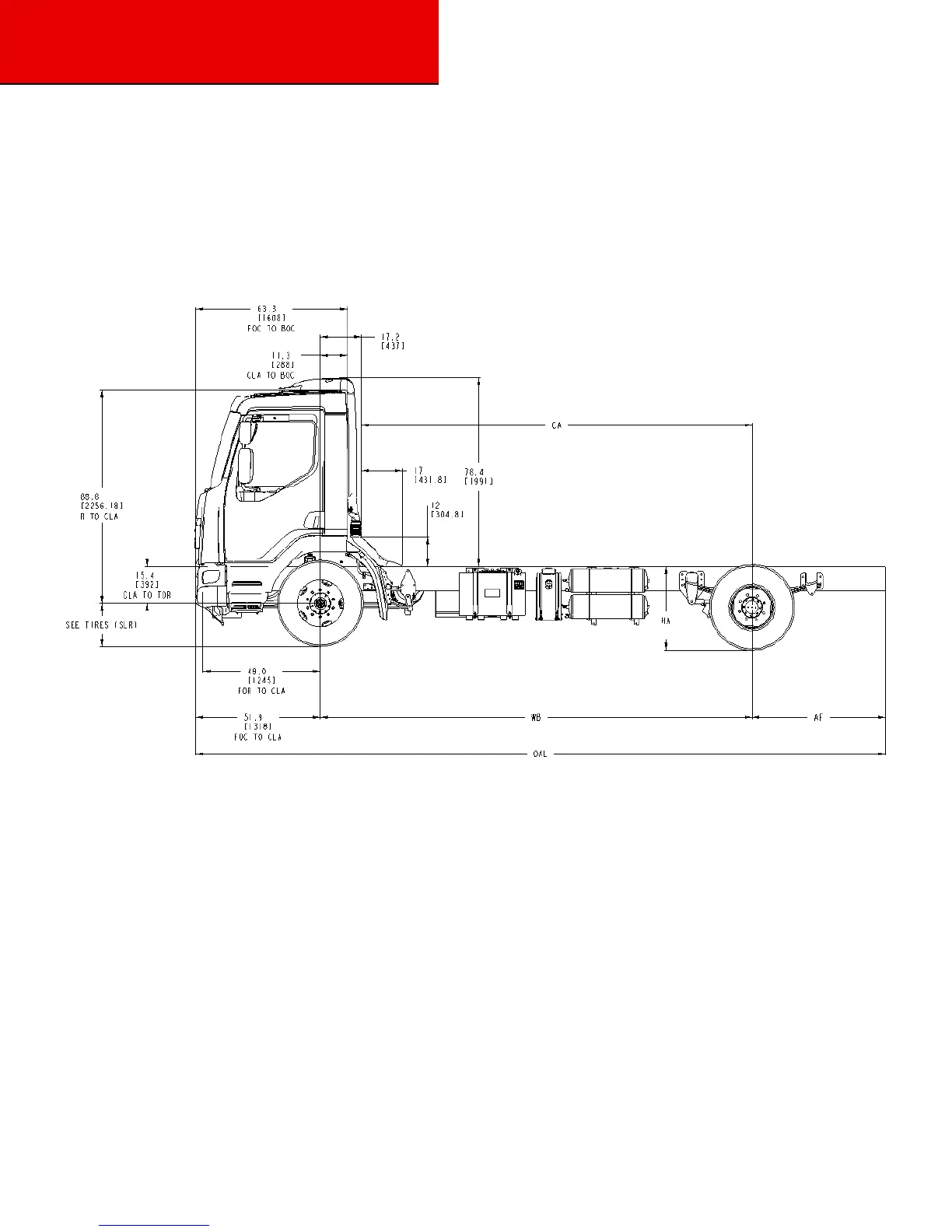

Side View – Model 220
Figure 3-2.1 Side View —Model 220 Laden Height and Length Measurement
Overall Model 220 Dimensions:
1) FAX TO BOC = 11”
2) O.A .Length = 53”+WB+AF
3) Frame Length = OAL-49”
4) Effective CA = WB-34
