Peterbilt 220 - Detail Views3-10; Left Side: Chassis Heights - Model 220; Figure 3-4.1 Cab Floor: Side View, Left Side W; 19.5 Tires; Table 3-7.1 Battery Box Step and Cab Floor Measurements W; 19.5 Tires

3-10
Section 3
Dimensions
Detail Views
Left side: Chassis Heights – Model 220

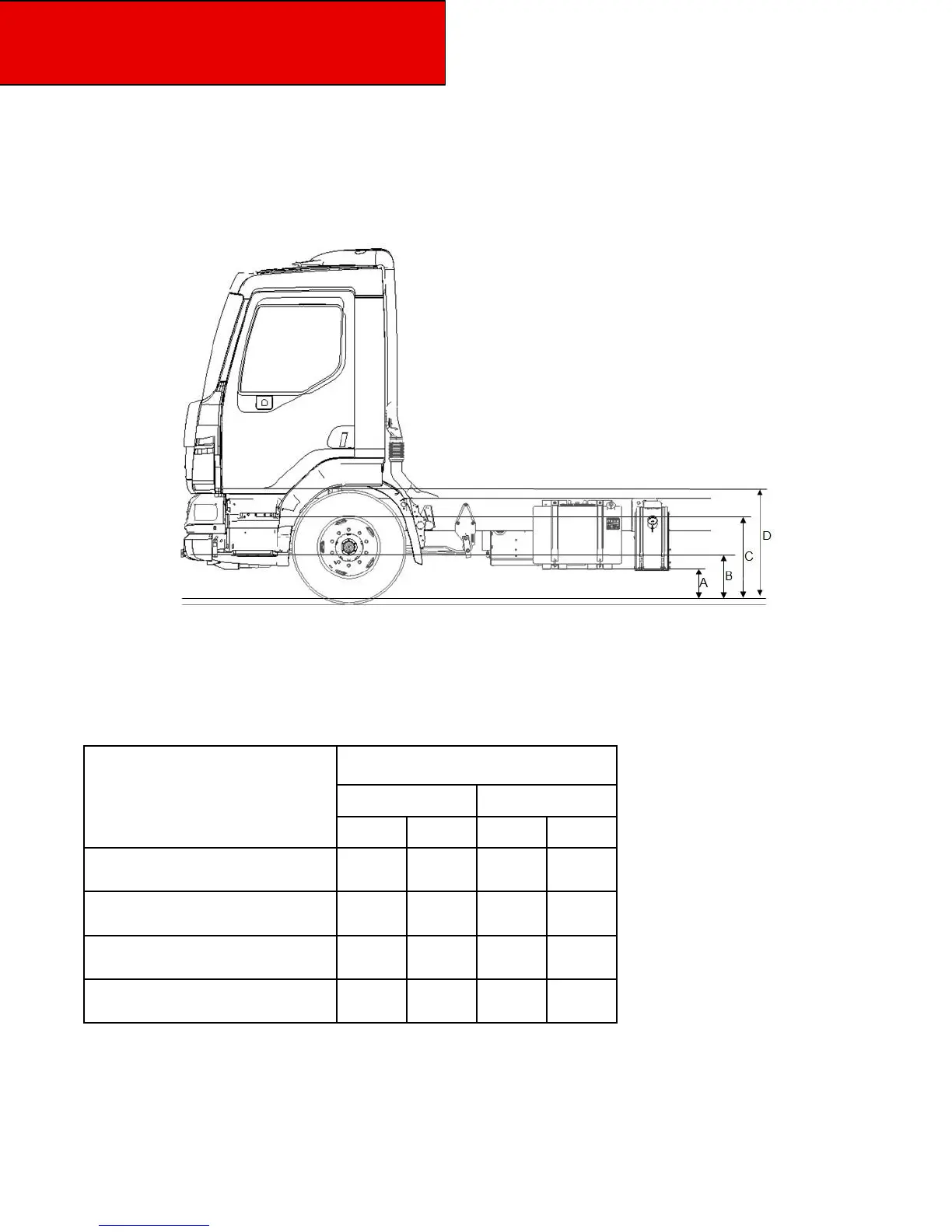

Figure 3-4.1 Cab Floor: Side View, Left Side w/ 19.5 Tires
Table 3-7.1. Battery Box Step and Cab Floor Measurements w/ 19.5 Tires
Position
Model 220 19.5 Tires
Unladen
Laden
In
mm
In
mm
A FUEL SUPPORT STEP
10.5
269
7.5
191
B FIRST STEP
16.6
421
13.2
336
C SECOND STEP FLOOR
27.2
690
23.8
605
D CABFLOOR
38.6
977
35.2
894
