3-9

Section 3

Dimensions

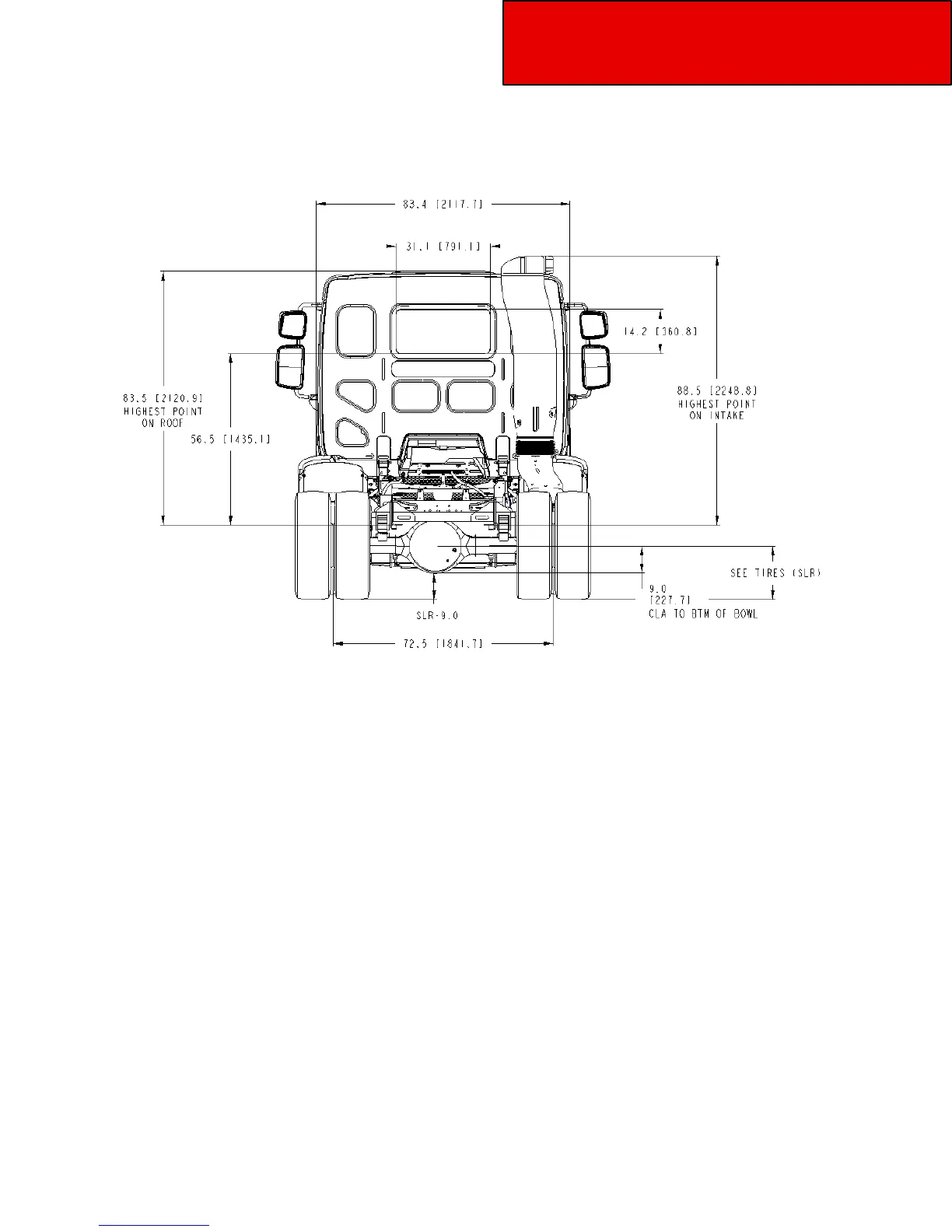

Front and Rear Views — Model 220

Figure 3-3.4 Model 220 Laden Rear View: Width and Ground Clearance Measurements:

inches (mm).
