3-8

Section 3

Dimensions

Front and Rear Views — Model 220

Table 3-6.1 Laden Ground

Clearance W/22.5 Tires

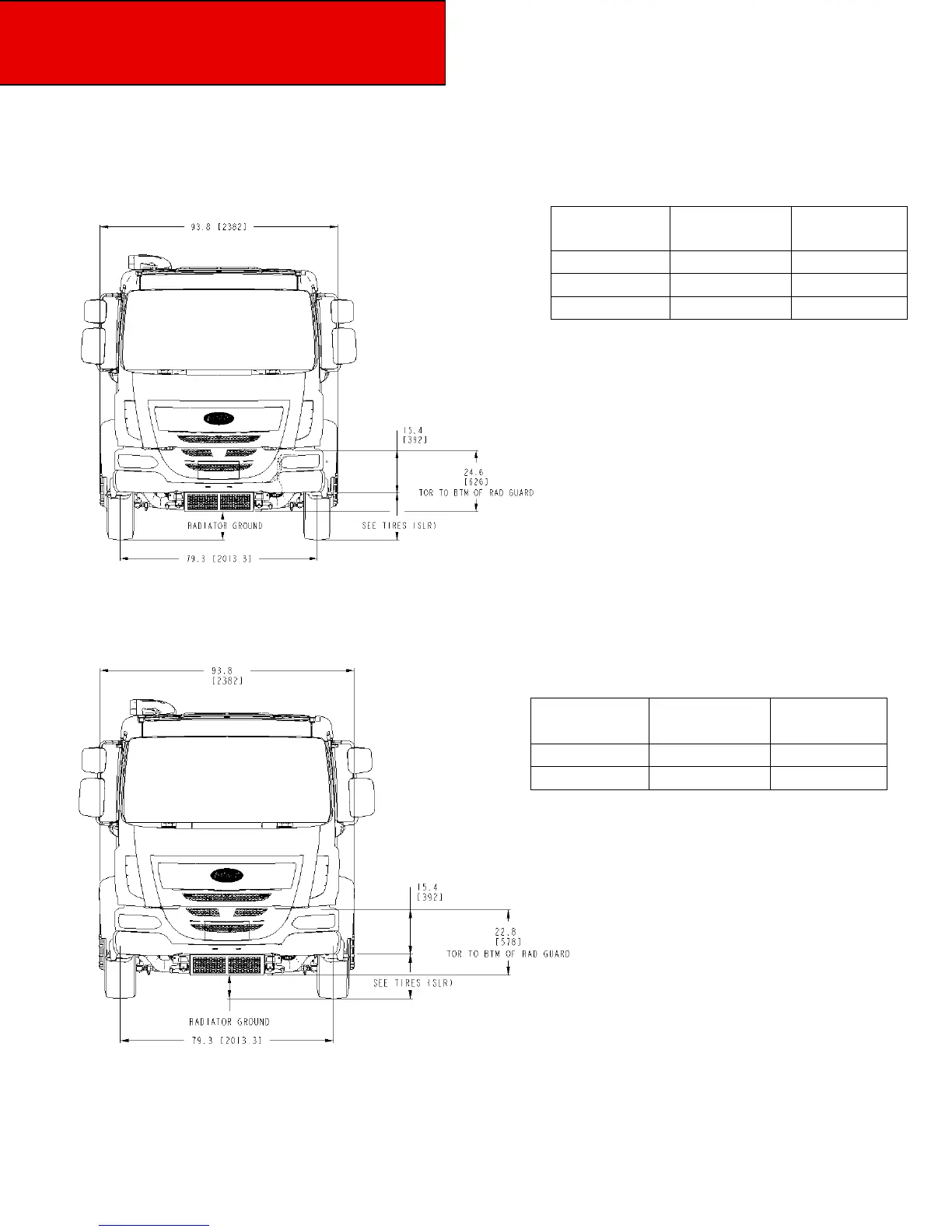

Figure 3-3.2 Model 220 Laden 22.5 Tires Front View: Width and Ground Clearance Measurements:

inches (mm).

Figure 3-3.3 Model 220 Laden 19.5 Tires Front View: Width and Ground Clearance Measurements:

inches (mm).

TIRE SIZE

SLR

RADIATOR

GROUND

275/22.5

17.6

7.7

295/22.5

18.8

8.9

11R/22.5

19.5

9.6

Table 3-6.2 Laden Ground clearance W/19.5 Tire

TIRE SIZE

SLR

RADIATOR

GROUND

245/19.5

15.5

7.5

265/19.5

15.9

7.9

Table 3-6.2 Laden Ground

Clearance W/19.5 Tire

TIRE SIZE

SLR

RADIATOR

GROUND

245/19.5

15.5

7.5

265/19.5

15.9

7.9
