3-6

Section 3

Dimensions

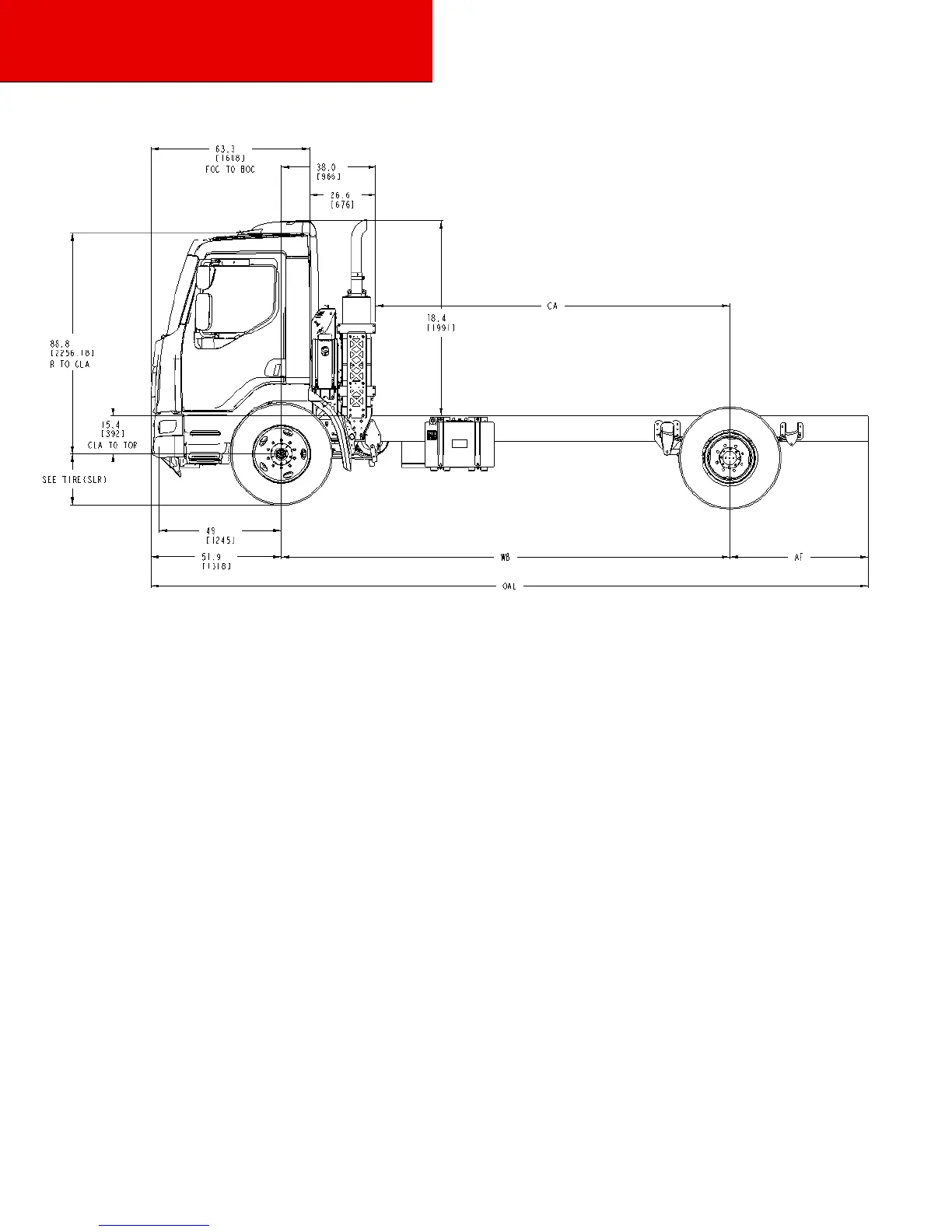

Figure 3-2.2 Side View —Model 220 Laden Height and Length Measurement

Overall Model 220 Dimensions:

1) FAX TO BOC = 11”

2) O.A .Length = 53”+WB+AF

3) Frame Length = OAL-49”

4) Effective CA = WB-38”
