GENERAL EXHAUST INFORMATION

Peterbilt will offer a DPF and SCR exhaust system on Model 220 chassis, which is a Vertical system for Model 220

models where DPF, SCR and tailpipe are installed side by side with

LH Vertical tailpipe.

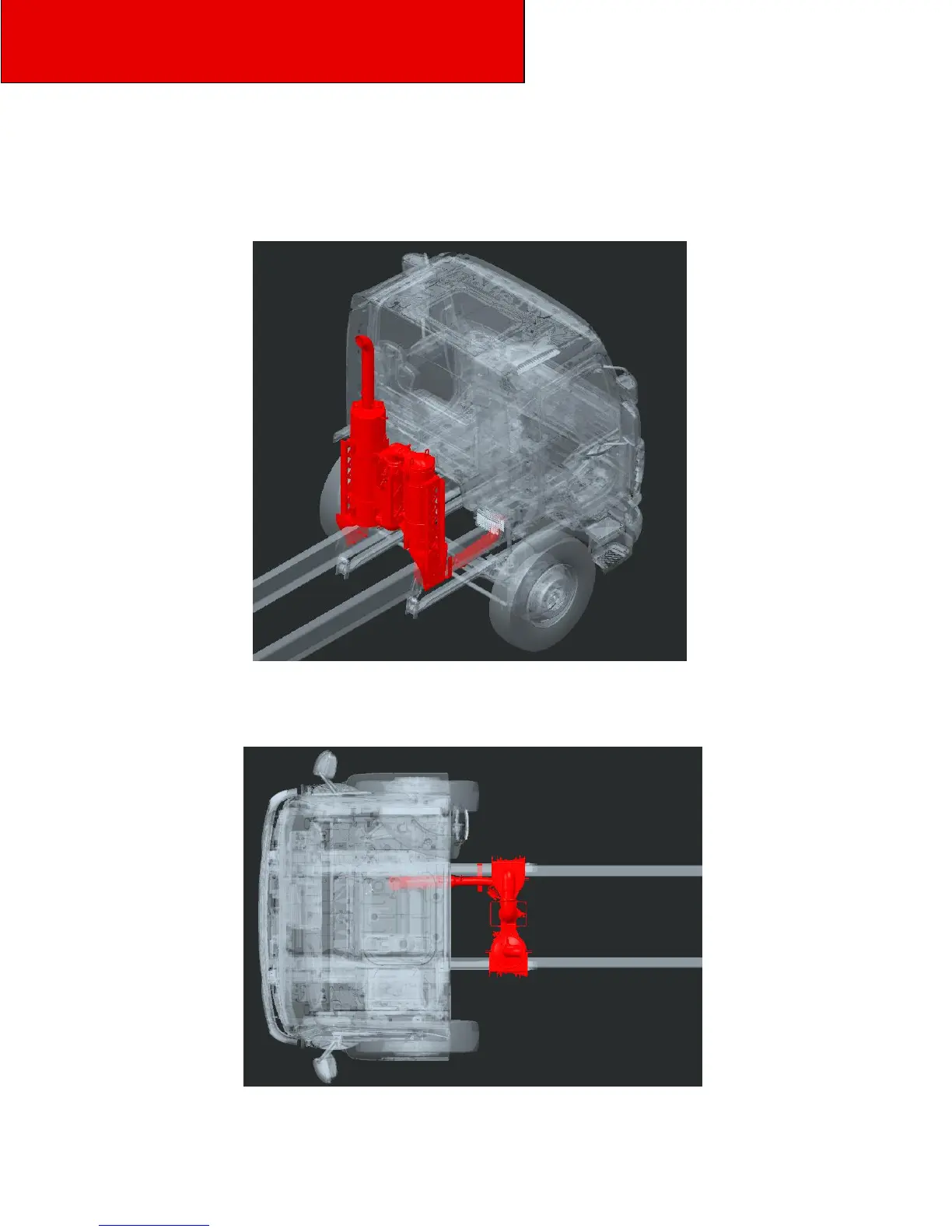

Figure 4-7.1 Vertical DPF and SCR with Vertical Tailpipe

Figure 4-7.2 Top view of Vertical DPF and SCR with Vertical Tailpipe
