Pfaff Creative Vision - Stitch-out Interface and Information

9:2
2
10
11
12
13
6
7
4
5
3
8
9
1
A
Embroidery mode - stitch-out

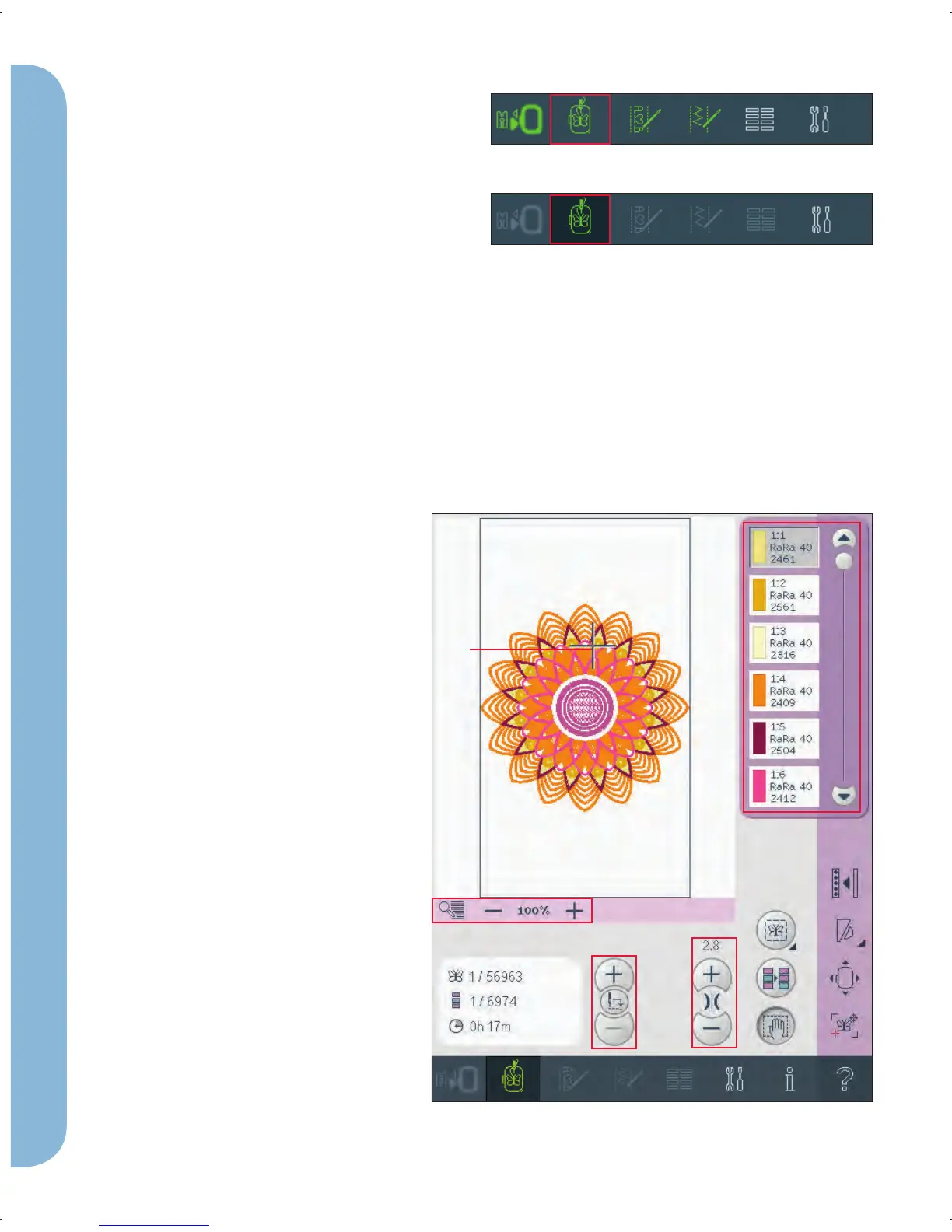

Embroidery stitch-out - overview
1. Crosshair
2. Color list and scroll bar
3. Zoom
4. Current stitch
5. Go to stitch
6. Thread tension
7. Basting
8. Color block sort
9. Touch function - pan (always
active)
10. More options
11. Speed control
12. Hoop position
13. Precise Positioning
To enter embroidery stitch-out
To embroider your design(s), enter embroidery
stitch-out by touching the embroidery toggle icon
(A) on the task bar. The embroidery unit needs to
be connected and the machine enters embroidery
stitch-out. Functions used when embroidering a
design are now shown.
Embroidery mode - edit
Embroidery mode - stitch-out
