Pfaff Creative Vision - Embroidery Unit and Hoops

7:2
G
H
I
C
J
D
E
A
C
F
B
B
M
Embroidery Mode - Preparations

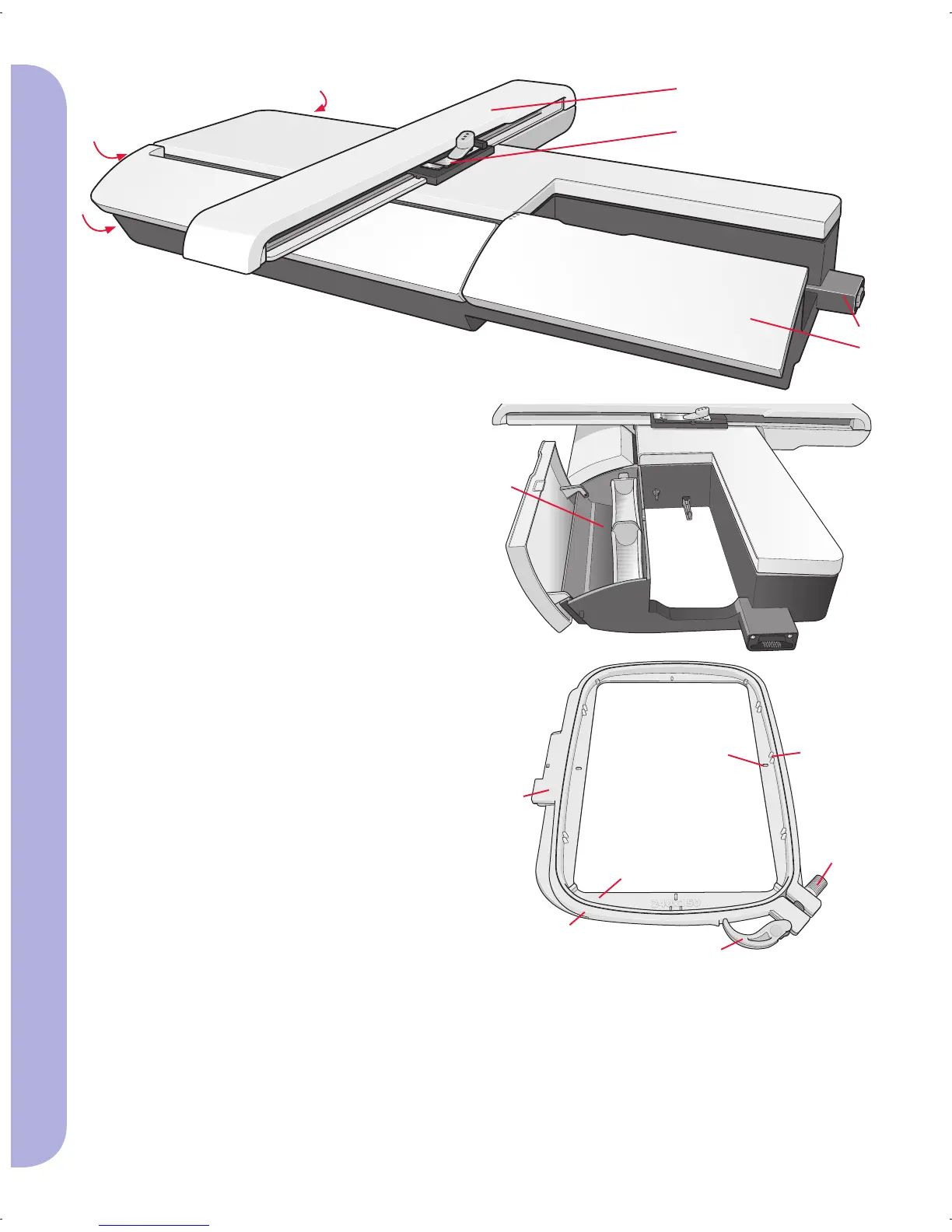

Embroidery unit overview
(type BE15)
A Embroidery unit release button
B Level adjusting feet
C Embroidery unit accessory tray
D Embroidery unit socket
E
Embroidery hoop connection assembly
F Embroidery arm
Note: A smaller embroidery unit, 260x200mm, is
available to purchase at your local authorized PFAFF®
dealer.
Embroidery unit accessory tray
Use the tray in the embroidery unit to store
accessories used for embroidering.
Built-in designs
Over 250 designs are included in the memory in
your machine.
Embroidery hoop overview
G Embroidery hoop connector
H Outer hoop
I Inner hoop
J Quick release
K Retaining screw
L Ribs for fi tting the clips
M Center marks
