Embroidery mode - edit
1. Embroidery fi eld
2. Zoom
3. Multi-select
4. Arrows
5. Select/deselect design
6. Total number of stitches
7. Delete
8. Duplicate
9. Group
10. Mirroring side to side
11. Mirroring end to end
12. Move design into hoop
13. Touch function - move
14. Touch function - rotate
15. Touch function - scale
16. Touch function - pan
17. Wheel
18. Wheel center icon
19. Save design
20. More options
21. Select hoop
22. Thread color edit
23. Shaping
24. Embroidery stitch editor
25. Resize
Embroidery edit
In embroidery edit you can adjust, combine, save, delete and restore designs. You do not need to have the
embroidery unit connected to your machine to edit your designs. The loaded design(s) are shown in the
embroidery fi eld (1).
Load a design
To load a design, open the selection menu. Select
designs (A) from the selection bar. Your personal
designs will be shown in the menu. To load a
design, just touch it on the screen and it will be
loaded into embroidery edit.

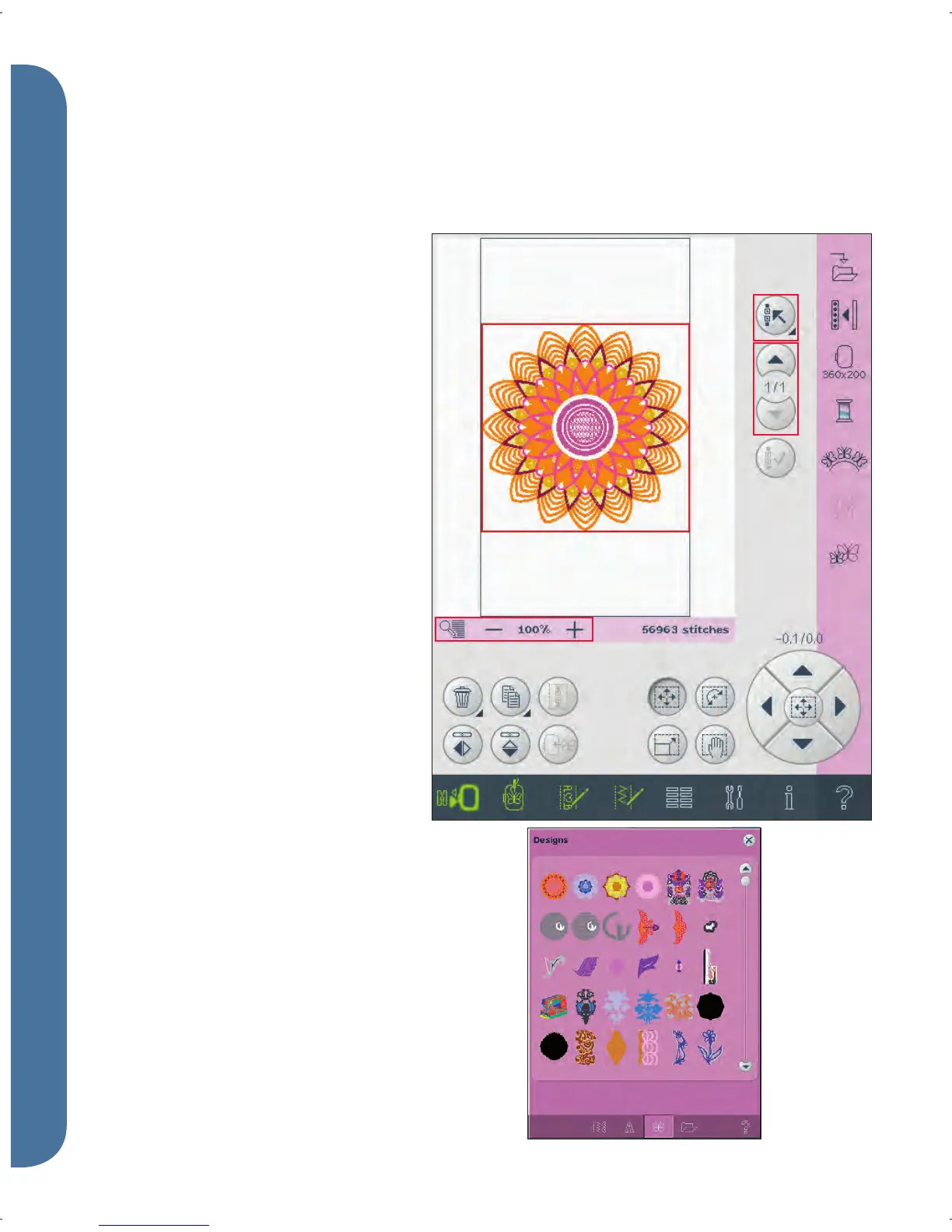

Embroidery edit - overview

Pfaff Creative Vision Specifications

General

Sewing Speed	1000 stitches per minute
Display	Color Touch Screen
USB Connectivity	Yes
Screen	Color Touch Screen
Needle Threader	Automatic
Bobbin Winding	Automatic
Automatic Thread Cutter	Yes
Embroidery Area	360mm x 200mm
Stitch Length	6mm
Stitch Width	9mm
