6:2
1
18
15
11
13
78
18a 18b
45
9
6
12
14
1716
3
10
2
Stitch Creator
Stitch Creator
In Stitch Creator, you can create completely new stitches and adjust every single stitch point. Customize
and create your own stitches. Add, erase, move and combine stitches directly on screen. Either create a
stitch of individually designed stitches or use already existing stitches or letters. You can also insert a
built-in stitch, and then edit to create your own version of that stitch.
The width of the stitch fi eld is 9mm and maximum stitch length is 6mm. The grid and the vertical center
line will help you to create your stitch. Your stitch can be up to approximately 500mm (20”) long and can
be stored in your personal menu or in personal fi les.

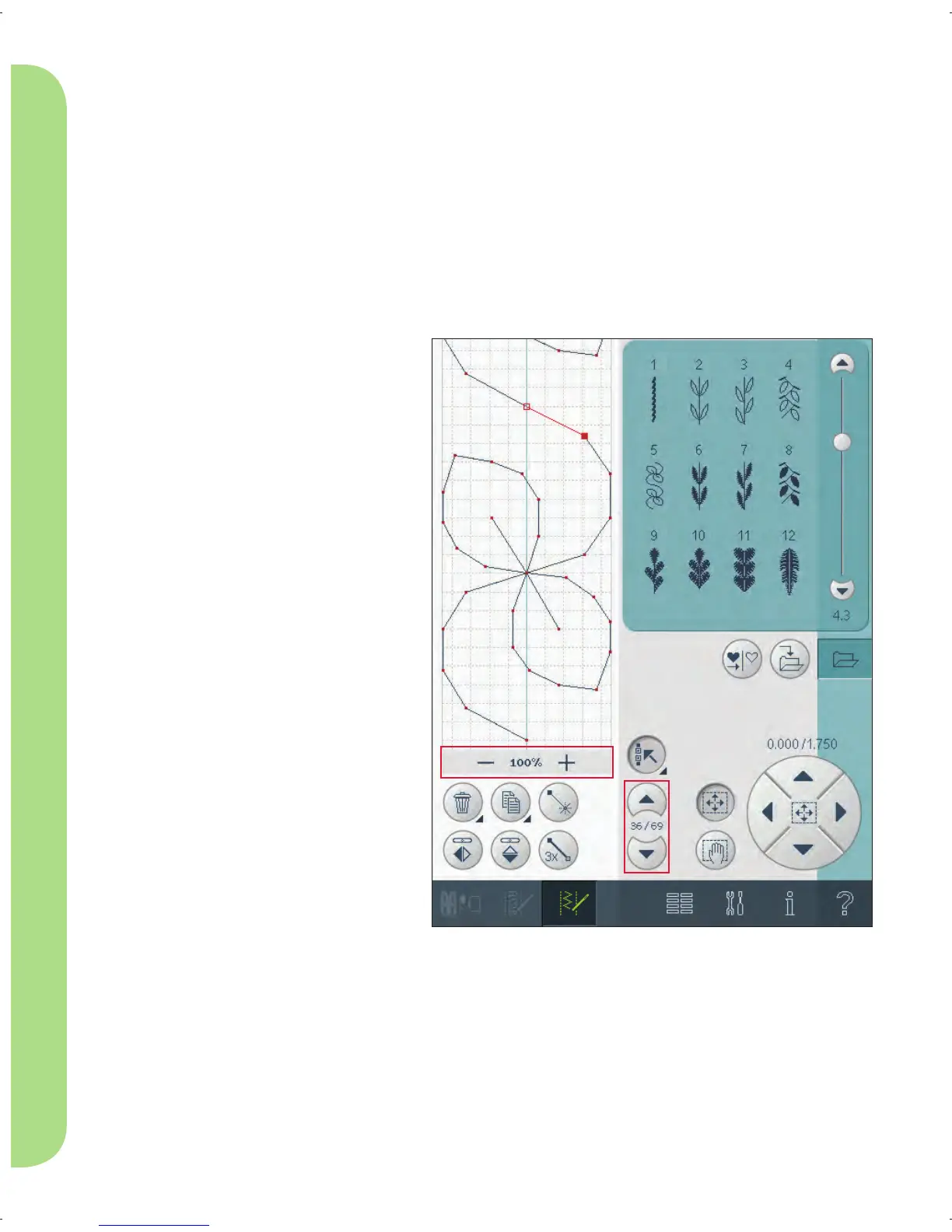

1. Stitch selection area
2. Scroll bar (Scroll through stitch
categories)
3. Stitch fi eld
4. Delete
5. Duplicate
6 New stitch point
7. Mirroring side to side
8. Mirroring end to end
9. Triple stitch
10. Zoom
11. Multi-select
12. Arrows
13. Touch function - move
14. Touch function - pan
15. Wheel
16. Stitch point needle position
17. Feeding length
18. Save options
a) Save to personal menu
b) Save to fi le
Stitch Creator - overview
Stitch Creator can be used in both sewing mode and in embroidery mode. To open, just touch the Stitch
Creator symbol on the task bar. To close Stitch Creator and sew your created stitch or combination, touch
the symbol on the task bar again.
Note: If sewing mode is active and your programmed stitch is ready to be sewn, you can also close the active function
by pressing the foot control, or by pressing the start/stop button.
Some stitches cannot be used with Stitch Creator. If you try to select one of these stitches, a pop-up will
notify you.
