The term “external unit” refers to future
Pioneer devices that are not currently planned
for, or to devices that allow control of basic
functions although they are not fully con-
trolled by the navigation system. Two external
units can be controlled by this navigation sys-
tem. When two external units are connected,
the navigation system allocates them as exter-
nal unit 1 or external unit 2.
For details of the connection method, refer to
“Installation Manual”.
For details concerning operation, refer to the
external unit’s operation manual. This section
provides information on external unit opera-
tions with the navigation system that differ
from those described in the external unit’s op-
eration manual.
p Operation varies depending on the external
unit connected. (In some cases, the exter-
nal unit may not respond.)

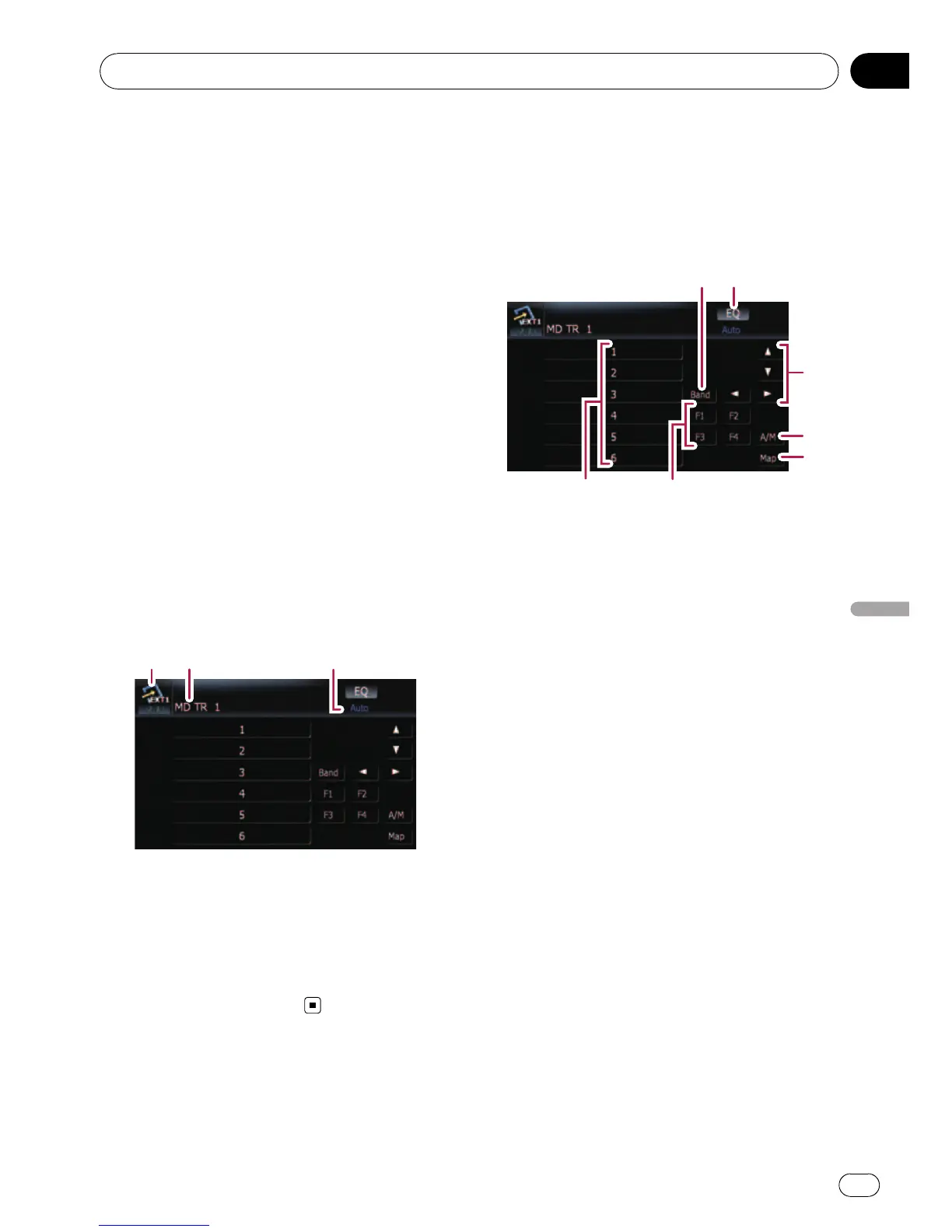

Reading the screen
3
12
1 Source icon
Shows which source has been selected.
2 External unit indicator
Displays the information that send by con-
nected external units.
3 Auto/Manual mode indicator
Shows the current mode.
Using the touch panel keys
% Touch [EXT1] or [EXT2] on the “AV
Source” menu to select the external unit.
= For details concerning operations, refer to
Screen switching overview on page 18.
2
4
5
3
1
76
1 Send a band command
Touch to send a band command to the ex-
ternal unit.
p Operation varies depending on the exter-
nal unit connected. (In some cases, the
external unit may not respond.)
2 Recalls equalizer curves
= For details, refer to Recalling equalizer
curves on page 140.
3 Send an [a], [b], [c],or[d] command
Touch to operate the external unit.
p Operation varies depending on the exter-
nal unit connected. (In some cases,
some functions may not be used until
you touch and hold the key.)
4 Switching the automatic and manual
function
You can turn automatic and manual func-
tion on or off.
You can switch between Auto and Manual
functions of the external unit connected.
Initially, this function is set to Auto.
p Operating commands set for Auto and
Manual operations vary depending on
the external unit connected.
5 Displaying the map screen
6 Send a 1 key to 6 key command
Using the exter nal unit (EXT1, EXT2)
En
121
