PDP-5000EX
107
5678
56
7
8
C
D
F
A
B
E

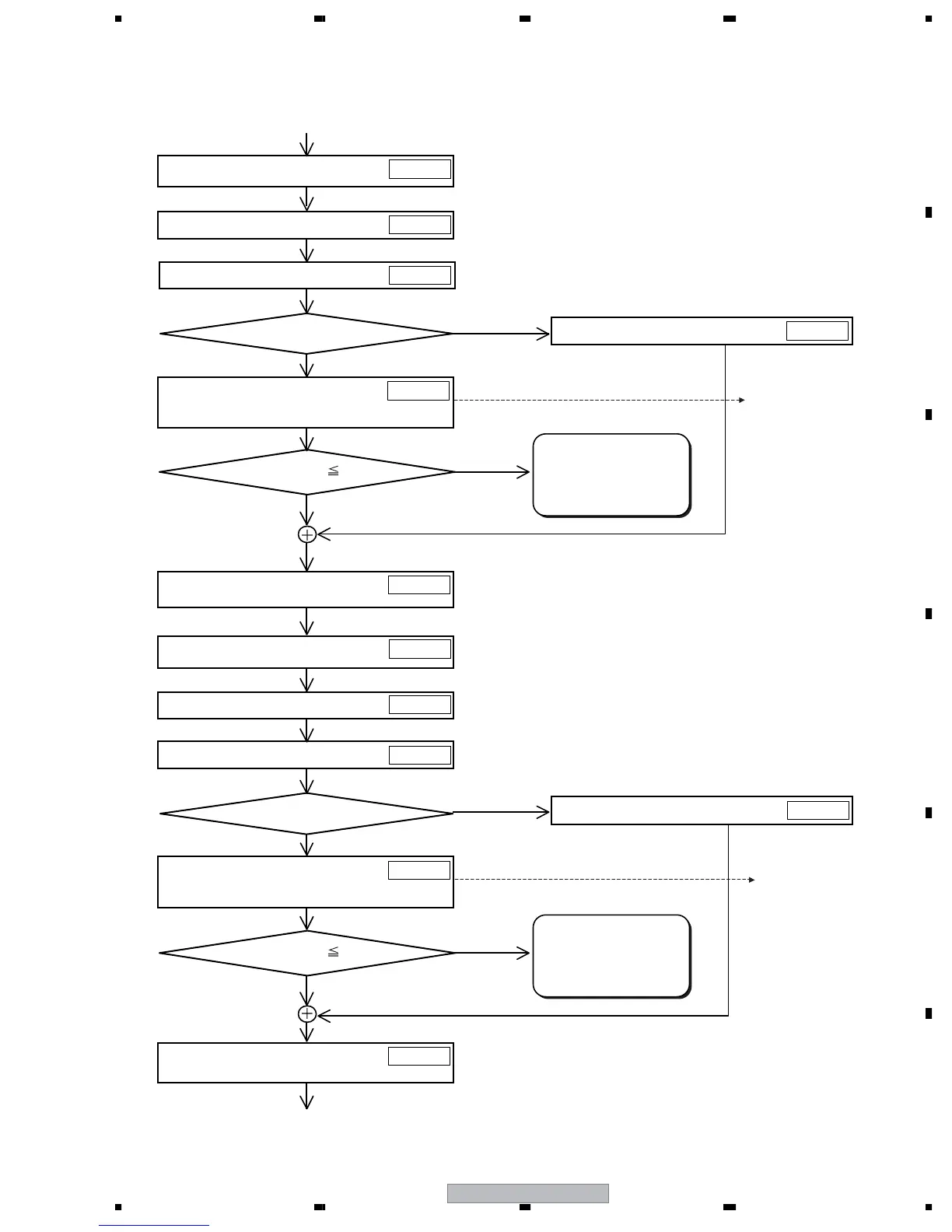

2 Actual Vofs adjustment (1)
Perform aging for 3 seconds with
RST MASK 01 (white) displayed.
MKS S51
Set to RST MASK 09 (light purple).
Set VOL OFFSET to 021 (15 V).
Any abnormal bright cells?
Increase Vofs data one volt by one volt
until abnormal lit cells disappears.
(VOL OFFSET must be 181 [46 V] or less.)
VOL OFFSET_min2 136(37[V]) ?
Return the Vofs value to the tentative
voltage setting.
Perform aging for 3 seconds with
RST MASK 01 (white) displayed.
Set to RST MASK 12 (light blue).
Set VOL OFFSET to 021 (15 V).
Any abnormal bright cells?
Increase Vofs data one volt by one volt
until abnormal lit cells disappears.
(VOL OFFSET must be 181 [46 V] or less.)
Return the Vofs value to the tentative
voltage setting.
Note:
To correctly check the lower limit of Vofs, the tentative Vofs
voltage must be set to the set voltage as shown on the panel label.
Note:
To correctly check the lower limit of Vofs, the tentative Vofs
voltage must be set to the set voltage as shown on the panel label.
Set VOL OFFSET_min2 to 021 (15 V).
Set VOL OFFSET_min2 to 021 (15 V).
Note:
This setting value becomes the value
for VOL OFFSET_min1.
Note:
This setting value becomes the value
for VOL OFFSET_min2.
VOL OFFSET_min2
VOL OFFSET_min1
Re-replacement
of the panel required
or abnormality in
circuits
Yes
Yes
Yes
Yes
(Check VOL OFFSET_min1.)
(Check VOL OFFSET_min2.)
No
VOL OFFSET_min2 136(37[V]) ?
Re-replacement
of the panel required
or abnormality in
circuits
No
No
No
(From 1 )
(To 3 )
MKS S51
MKS S62
MKS S59
VOF 021
VOF 021
VOF 021
VOF 021
VOF ∗∗∗
VOF ∗∗∗
VOF ∗∗∗
VOF ∗∗∗
To Next Page
