Pioneer PDP-5000EX Service Manual

PDP-5000EX
92
1234
1234
C
D
F
A
B
E

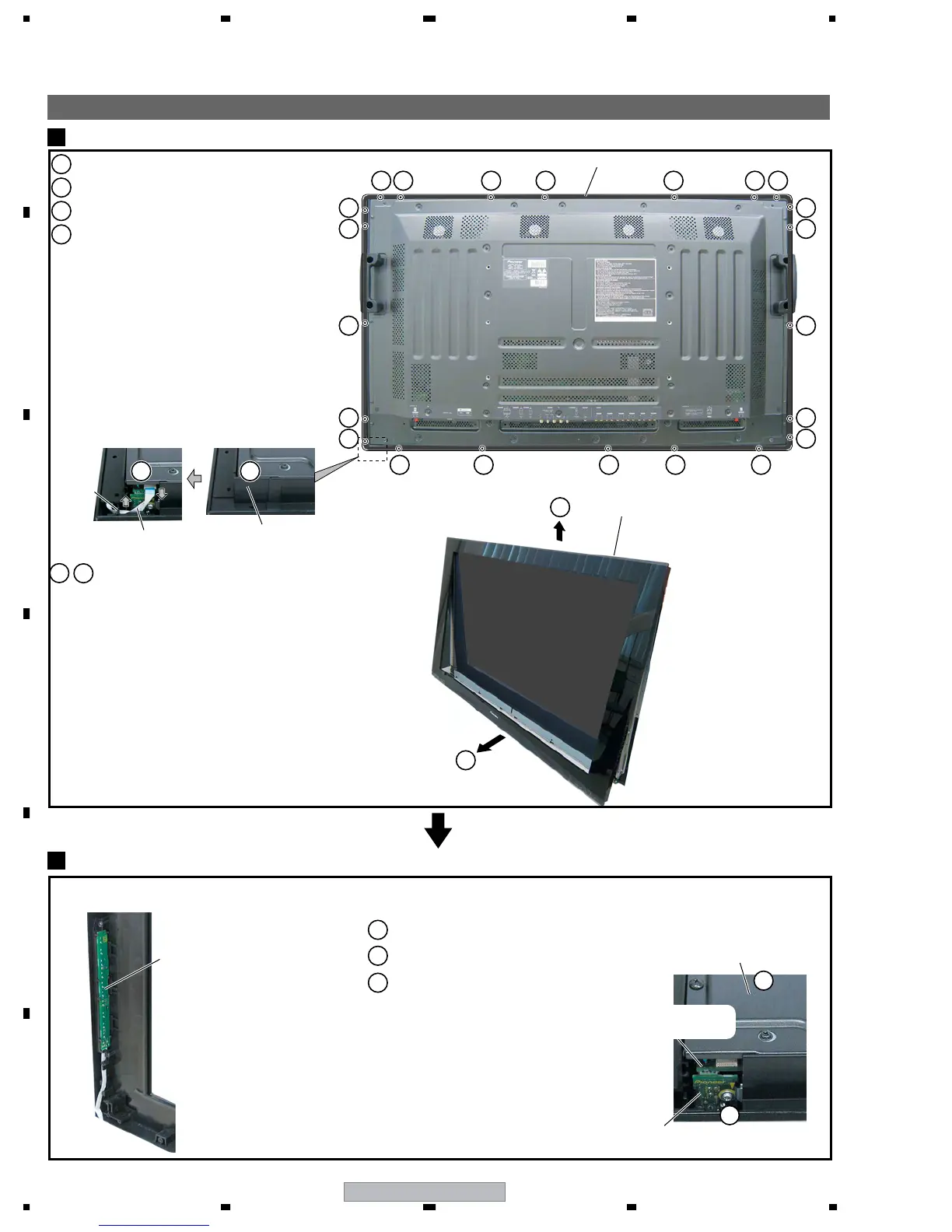

Disassembly (1)
Front Case Assy
• FHD Key Assy
FHD Key Assy, FHD IR Assy, FHD KEY CONTROL Assy
• FHD IR Assy, FHD KEY CONTROL Assy
1
1 -1
1
Remove the 22 screws. (APZ30P100FTB)
2
Remove the corner Holder B.
3
Disconnect the flexible cable.
4
Remove the front case assy.
Front Case Assy
Corner Holder B
Flexible cable
1 1 1 1 1 1 1
1
1
1
1
1
1
1
1
23
1
1
1 1 1 1 1
Hook
5
6
5
1
1
Remove the Terminal Panel (F). (refer to "Terminal Panel")
Terminal Panel (F)
2
2
Remove the one screw
3
Remove the IR Assy, KEY CONTROL Assy.
6
Remove the front case assy.
Front Case Assy
Key Assy
FHD IR Assy
FHD KEY CONTROL
Assy

Pioneer PDP-5000EX Specifications

General

Depth	98 mm
Width	1282 mm
Height	750 mm
Weight	39800 g
Pixel pitch	- mm
Product color	Black
Audio (L/R) in	1
Noise reduction	Yes
RMS rated power	13 W
Display diagonal	50 \
Display brightness	1000 cd/m²
Display technology	Plasma
Power requirements	AC 110 - 240 V, 50/60 Hz
Contrast ratio (typical)	3000:1
Power consumption (standby)	0.4 W
Power consumption (typical)	420 W
