Planet Switch User Manual

Industrial Renewable Energy 4-Port 10/100/1000T
802.3at PoE+ Managed Ethernet Switch/Router
BSP-360
27

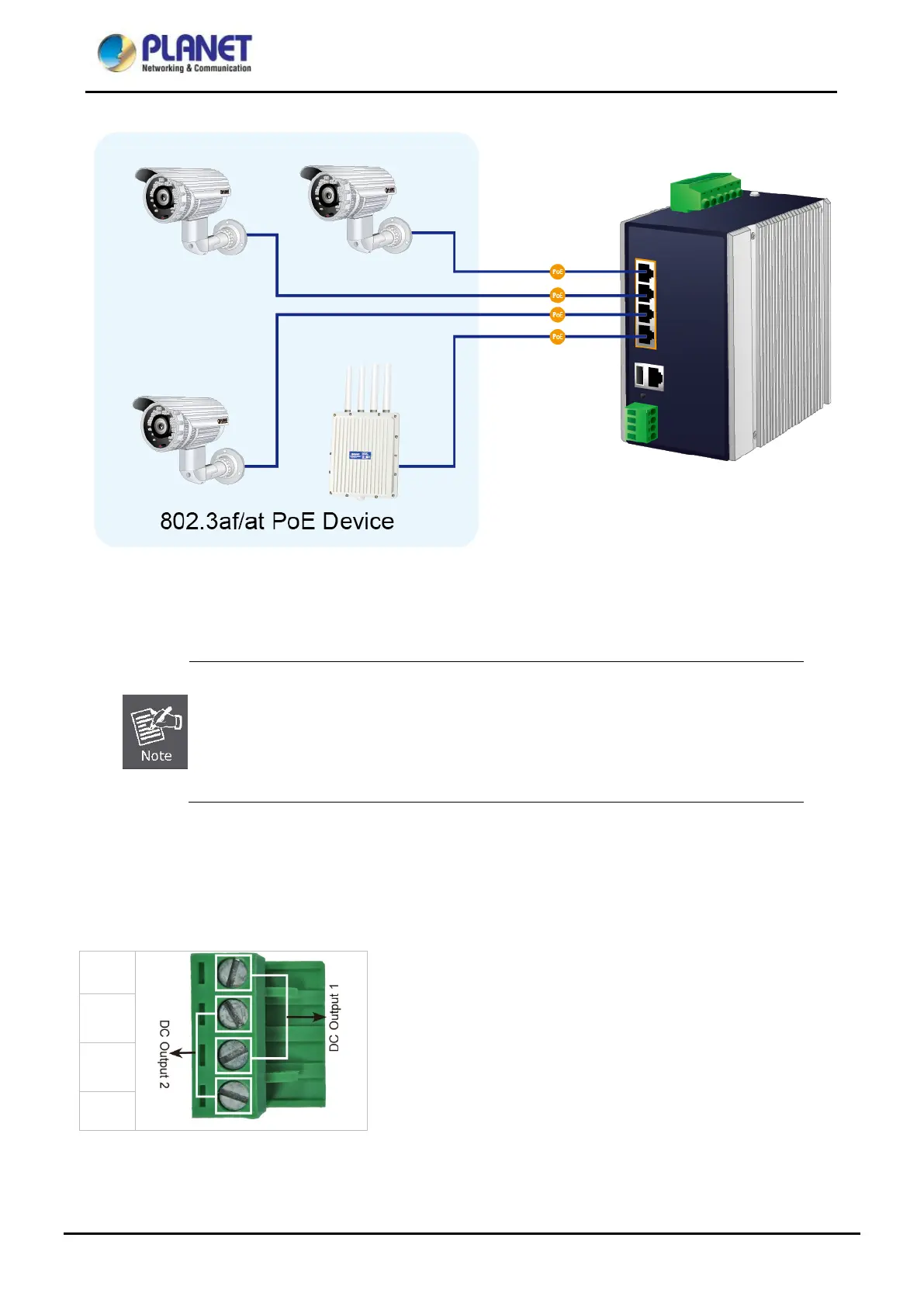

Step 4. Connecting 802.3af/802.3at PoE Device
(1) Connect the PoE devices to ports 1~ 4 on the BSP-360.
(2) Check the PoE-in-Use LED. If the network devices such as PoE camera and PoE wireless AP are
powered, the PoE-in-use LED will turn ON and Link/Act LED will blink for a successful connection or
data receiving.
 Please use Cat5/5e or above cable and the maximum distance should be within
100 meters.
 If the network devices are installed outdoors, please consider to install a
well-grounded lightning arrestor (such as PLANET ELA-100) to protect the network
device and the BSP-360.
Step 5. Wiring the DC Outputs
Please follow the steps below to insert the power wires for DC power required equipment.
(1) Please find the terminal block connector with two DC power outputs shown below:
V1+
V2+
V1-
V2-
(2) Insert the Positive and Negative DC wires into the V+ and V- terminals, respectively; Terminals 1 and 3
for Power 1, and Terminals 2 and 4 for Power 2.

Planet Switch Specifications

General

Form Factor	Desktop
Port Speed	10/100/1000 Mbps
MAC Address Table	8K
Switching Capacity	16 Gbps
Operating Temperature	0 to 50°C
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
