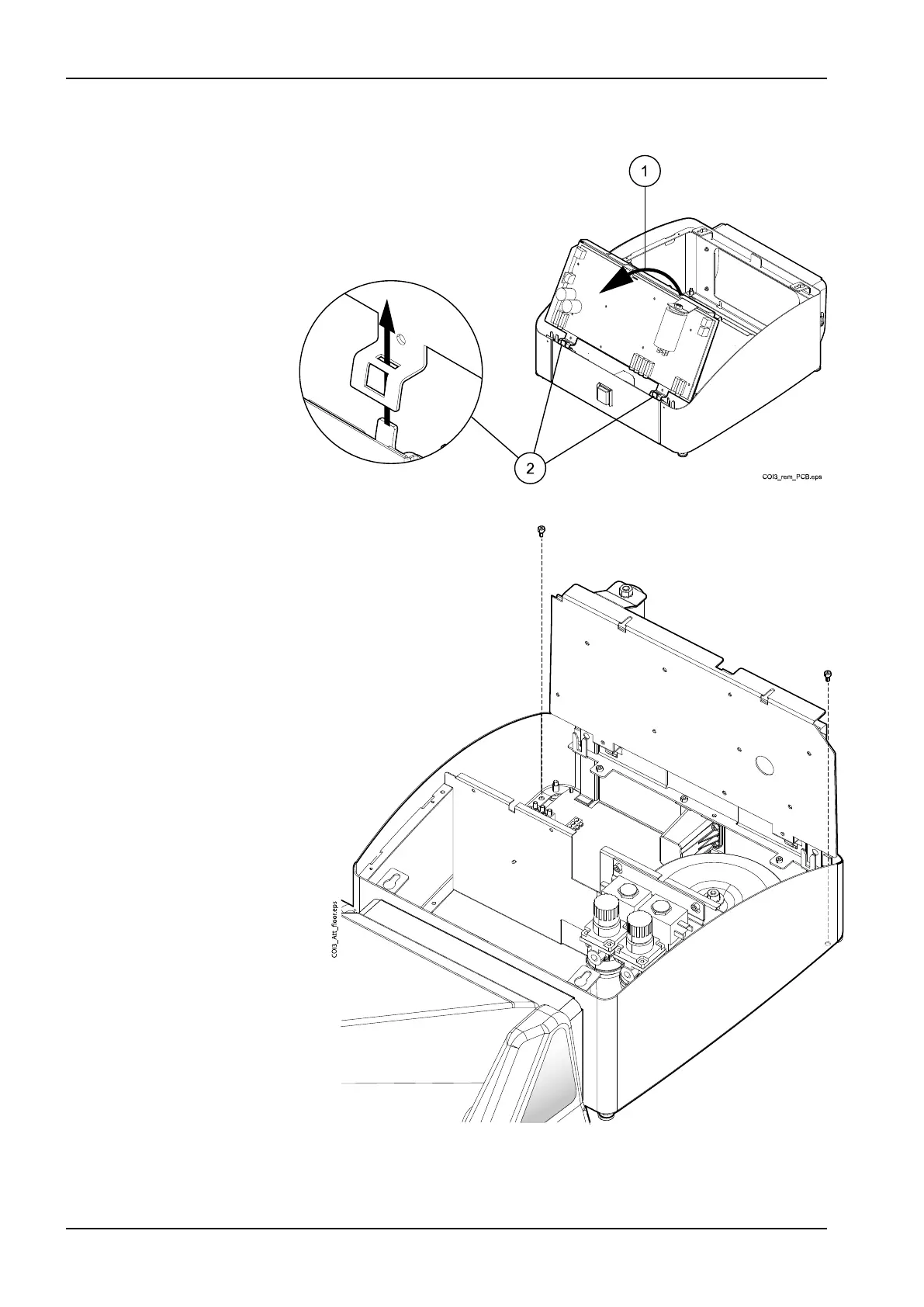

5. Tilt the Main control PCB away upwards (1) and secure it to the clips
located on the box frame (2).
6. Attach the junction box to the floor with two screws DIN 7981 4,2 x 25.
5 Installing junction box
18 Planmeca Compact i3 Installation manual
