16 Installing instruments
The positions of the instruments are completely user dependent. The only
instrument, which has fixed position is the syringe. The syringe must be
positioned next to the control panel i.e. to the leftmost position.
The microprocessor control logic automatically identifies the instrument hose
in each position. This enables the instrument positions to be rearranged
afterwards without any reprogramming.
NOTE
Please note that you don’t have to attach instrument hoses (or instrument
arms/holders) to all positions.
16.1 Attaching balanced instrument arms

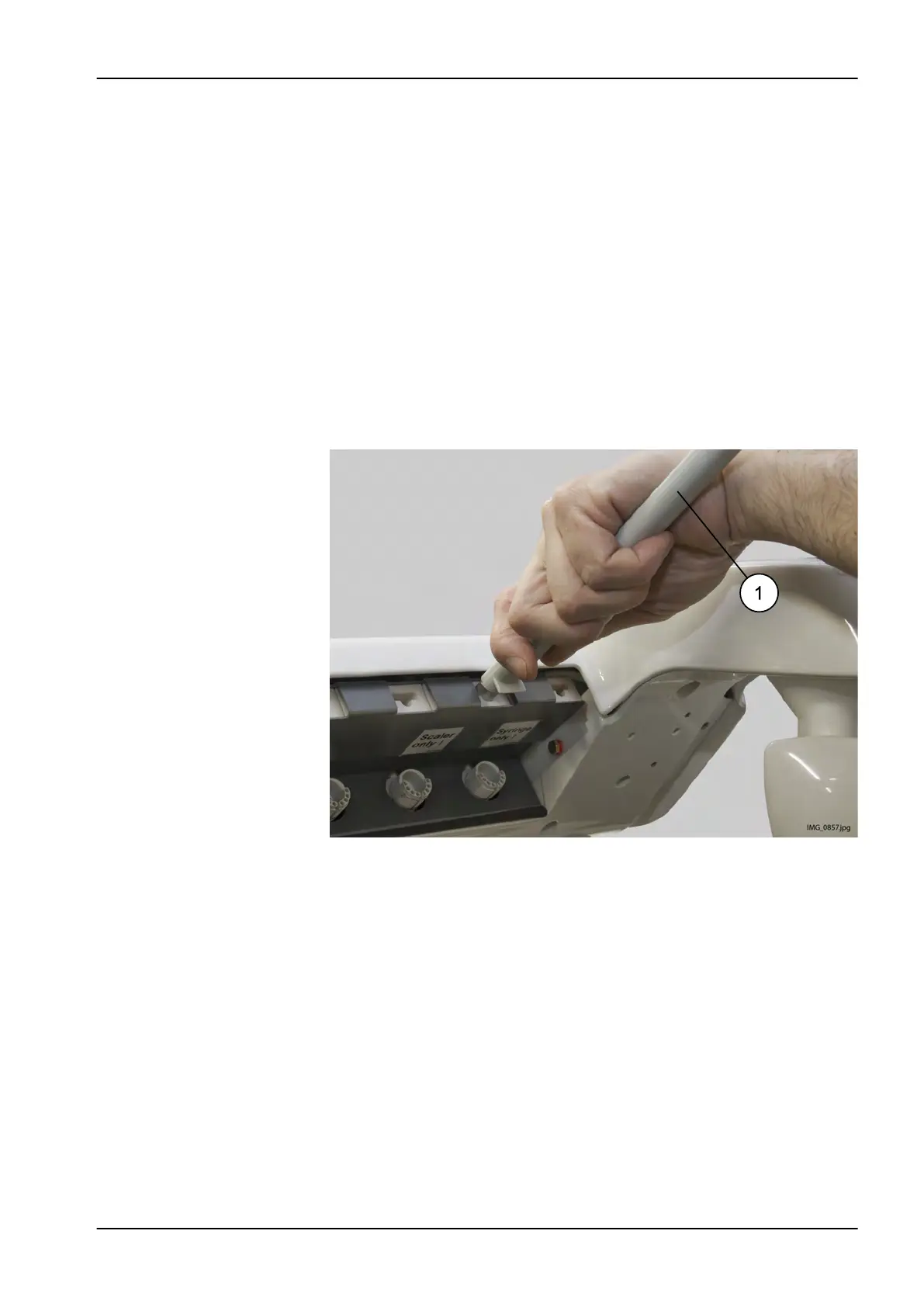

Attach the instrument arms (1) to the back side of the instrument console by
pushing them firmly into position.
16 Installing instruments
Installation manual Planmeca Compact i3 81
