Planmeca Compact i3 Installation Manual

Steps
1.

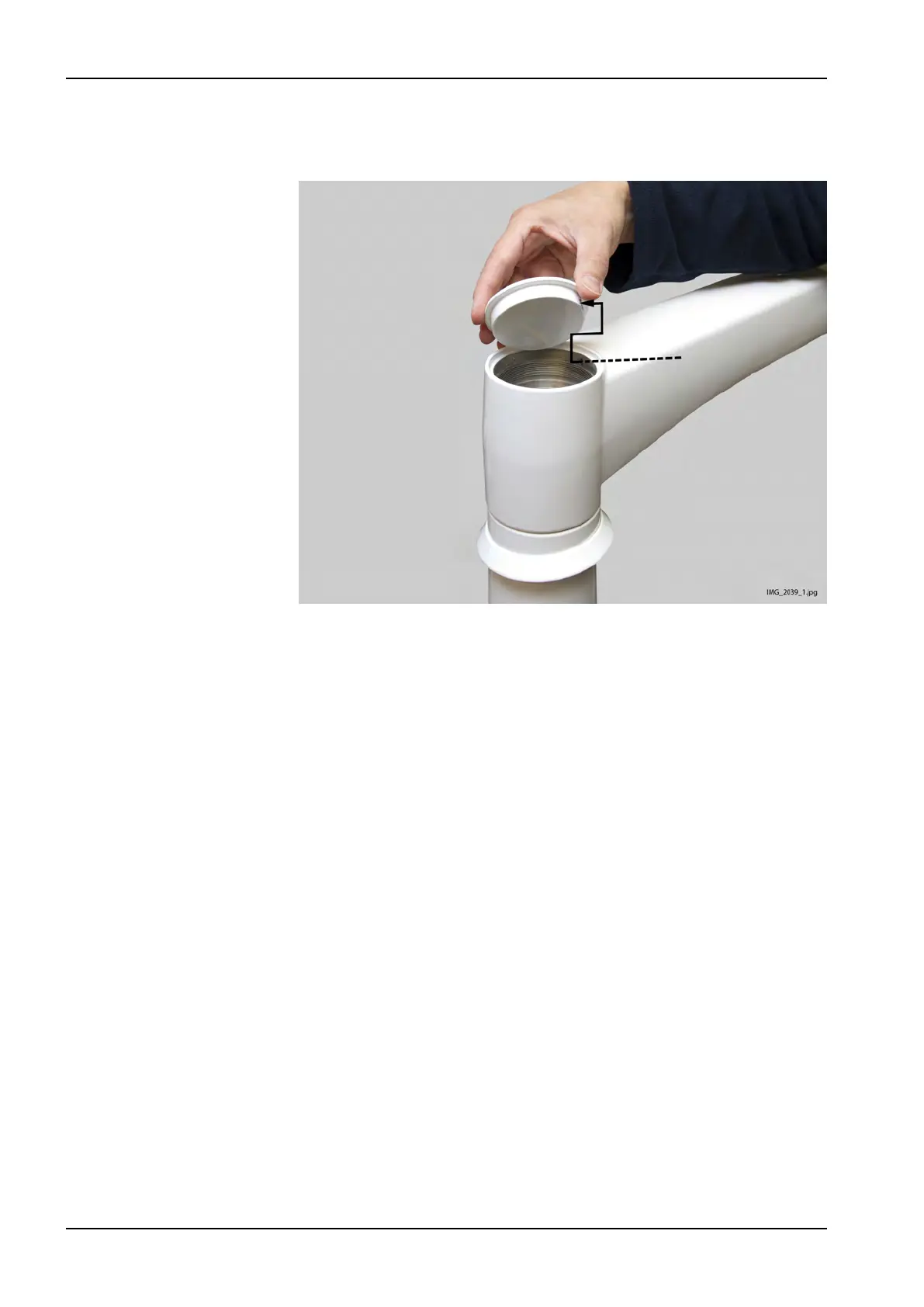

Place the cover plug over the operating light opening on the delivery arm
so that the fastening screw hits opening on the cover plug.
7.6 Connecting water and air tubes
A
bout this task
Before connecting the air and water tubes make sure that you have correctly
identified the floor tubes. Even when they are already labelled it is good to
double-check them.
7 Installing OP delivery arm
34 Planmeca Compact i3 Installation manual
