Planmeca Compact i3 Installation Manual

7 Installing OP delivery arm
7.1 Attaching OP delivery arm to chair
Steps
1. Drive the seat to uppermost position. Switch off the dental unit.

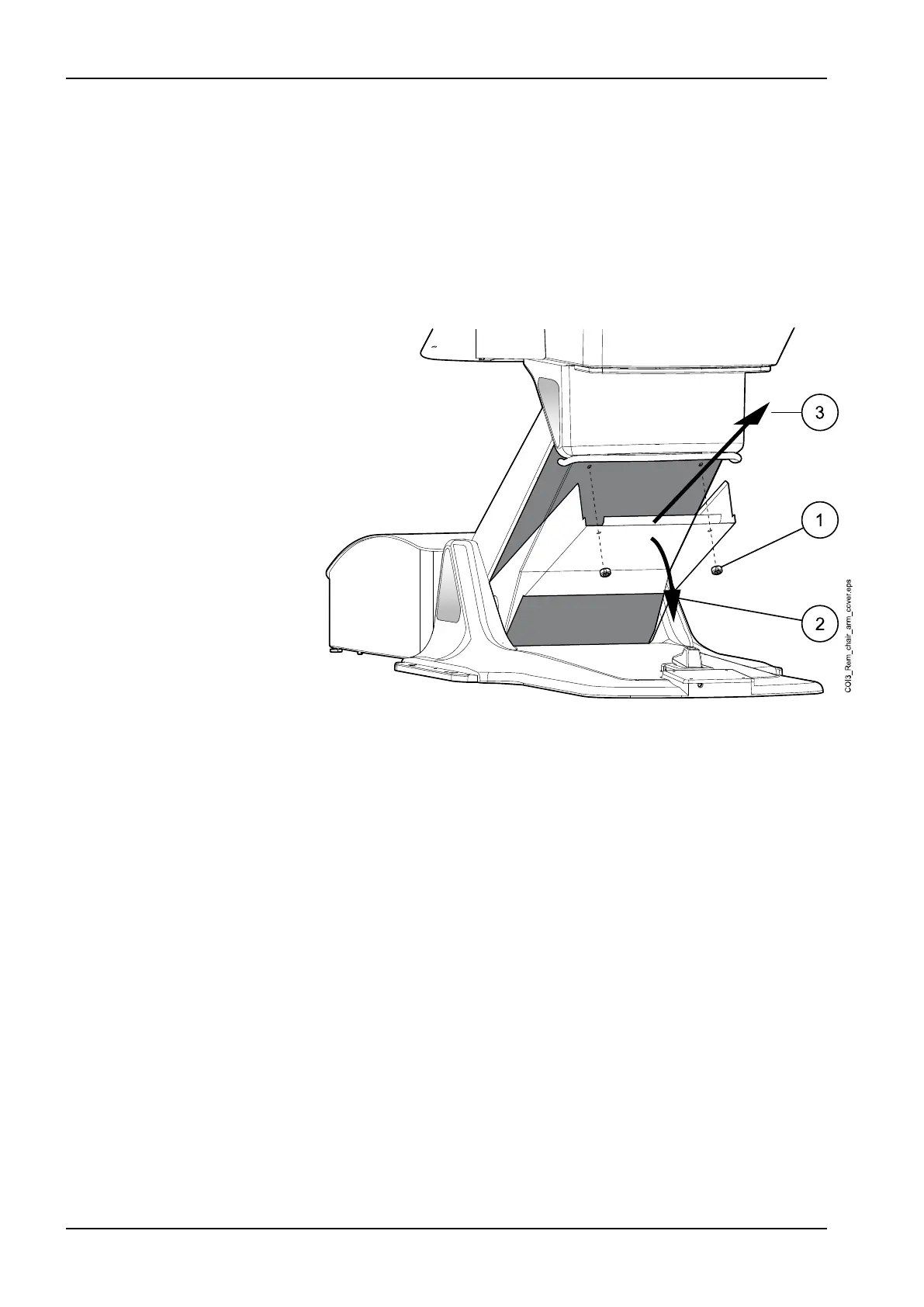

2. Unscrew two attachment screws from the lifting mechanism cover plate
using a 4 mm Allen key (1). Turn the cover plate downwards (2) and lift it
away from the chair (3).
7 Installing OP delivery arm
22 Planmeca Compact i3 Installation manual
