Planmeca Compact i3 Installation Manual

16.4.2 Instrument console with hanging-tube instruments
S
teps

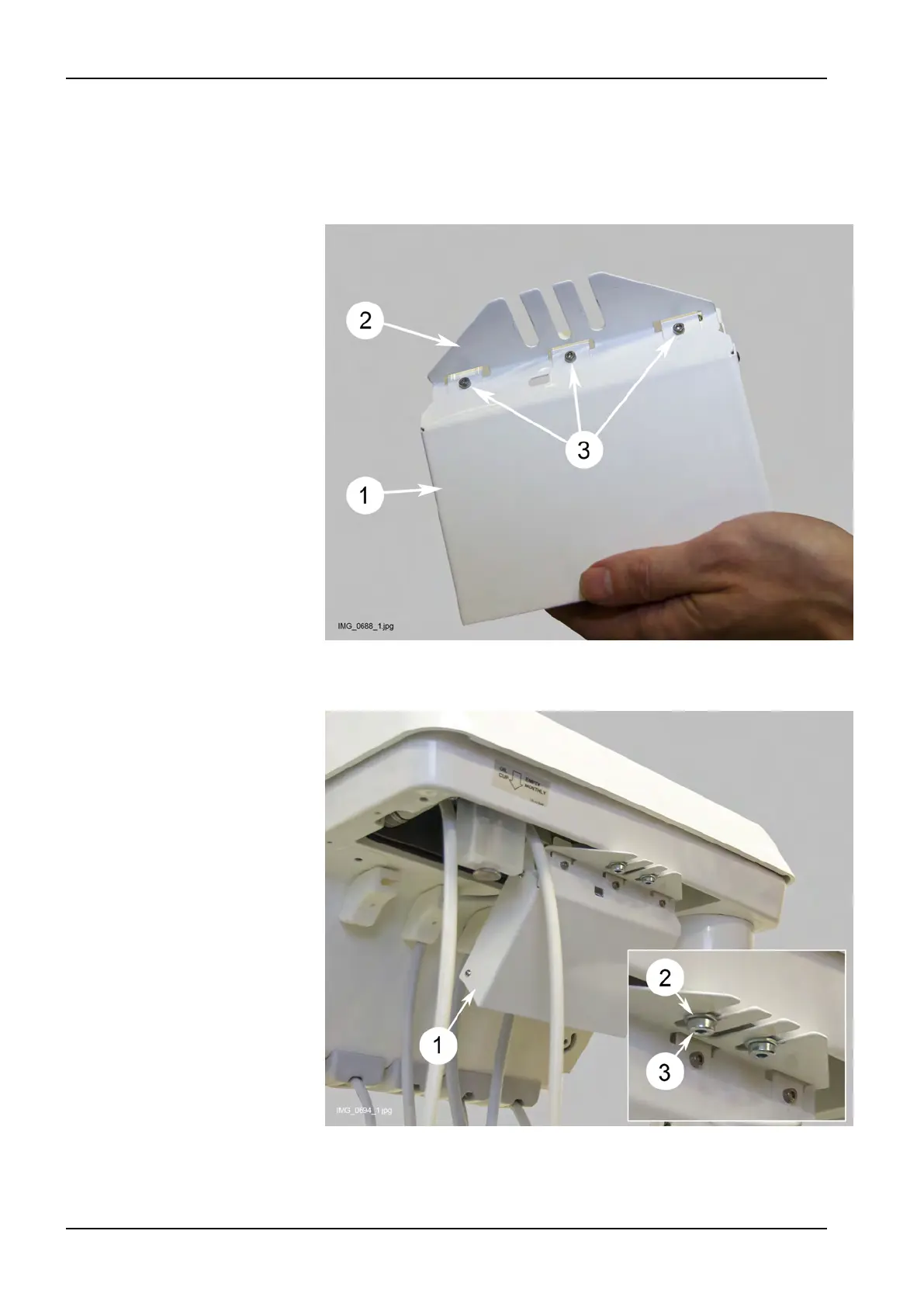

1. If not already attached, attach the apex locator housing assembly (1) to
the adapter plate (2) with three screws DIN912 M3x4 (3).
2. Loosely attach two washers (2) and screws DIN7984 M6x12 (3) to the
instrument console. Hang the apex locator housing assembly (1) on
these screws before tightening the screws.
16 Installing instruments
86 Planmeca Compact i3 Installation manual
