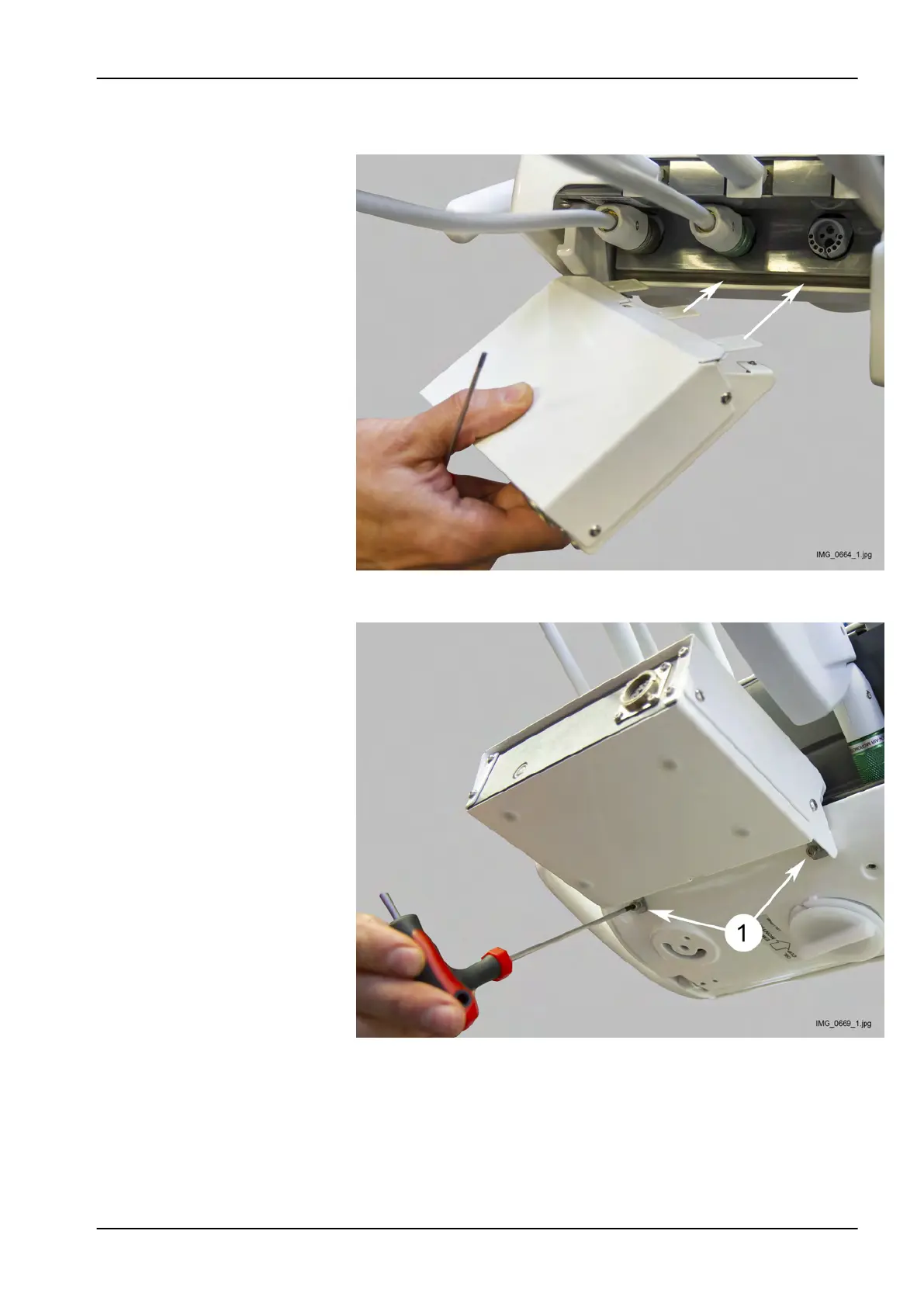

2. Slide the apex locator housing assembly into the back of the instrument
console.
3. Attach the apex locator housing assembly to the instrument console with
two attachment screws DIN912 M3x4 (1) using a 2.5 mm Allen key.
4. Connect the Morita micromotor hose to the apex locator housing
assembly and the instrument console, and then connect the micromotor.
5.
Test the apex locator function as described in section "Testing apex
locator function" on page 87.
16 Installing instruments
Installation manual Planmeca Compact i3 85
