Planmeca Compact i3 Installation Manual

11 Chair swivel
About this task
In normal operation mode the seat can be swivelled up to 30° to the right or
left in steps of 5°. In service mode the chair can be swivelled to 90° position.
Steps

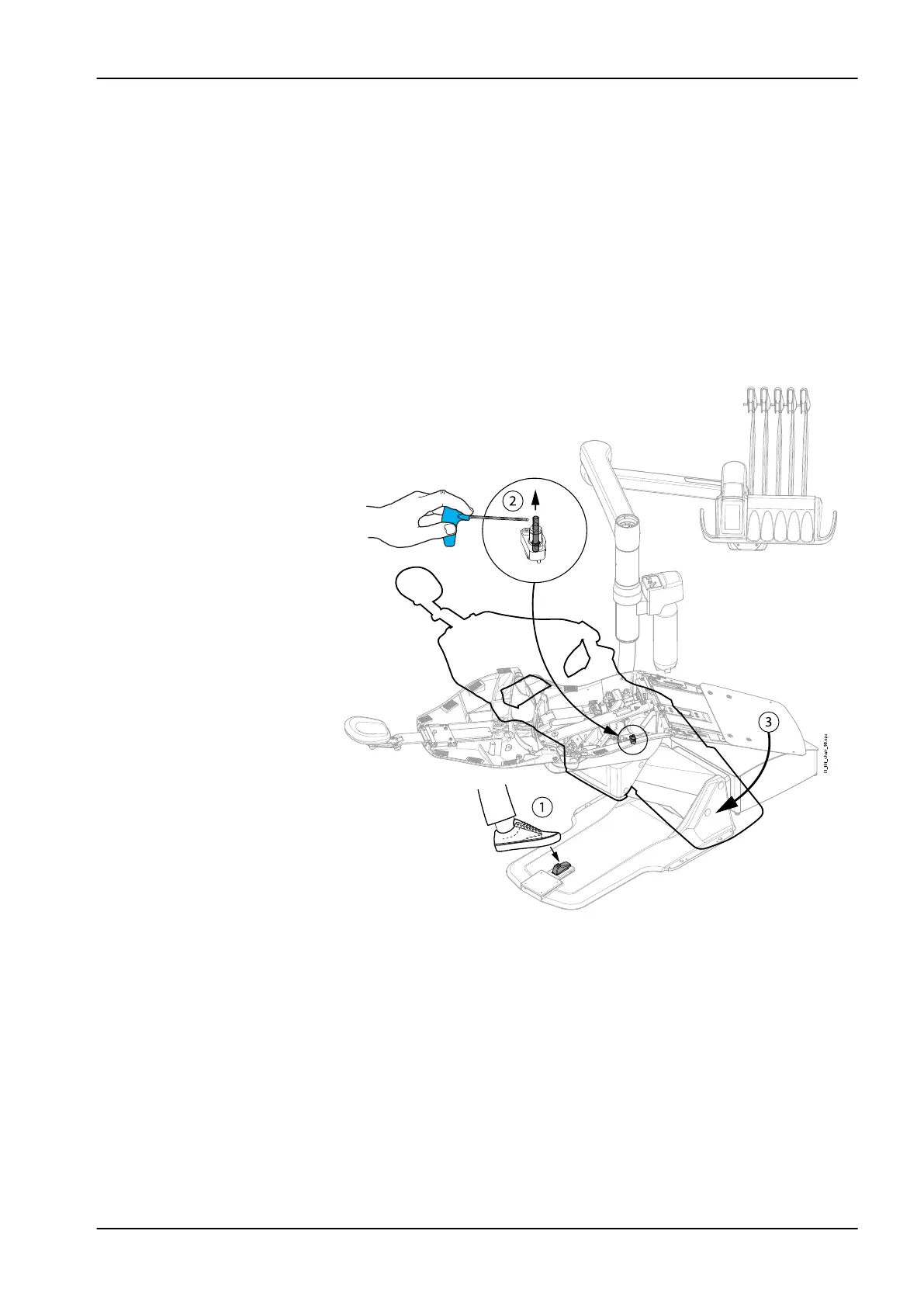

1. Release the locking mechanism by pressing the foot switch located on
the chair base and rotate the seat to 30° limit.
2. Lift the rotation limiter pin upwards with e.g. an Allen key.
3. Turn the seat to 90° limit.
4. To move the seat back to normal movement range lift the rotation limiter
pin upwards and move the seat to 30° limit. Then release the locking
mechanism by pressing the foot switch and move the seat to desired
position.
11 Chair swivel
Installation manual Planmeca Compact i3 59
