16.3 Attaching instrument hoses

NOTE

Please note that the quick connectors are polarised (not symmetrical) and

should be attached with the flat side upwards.

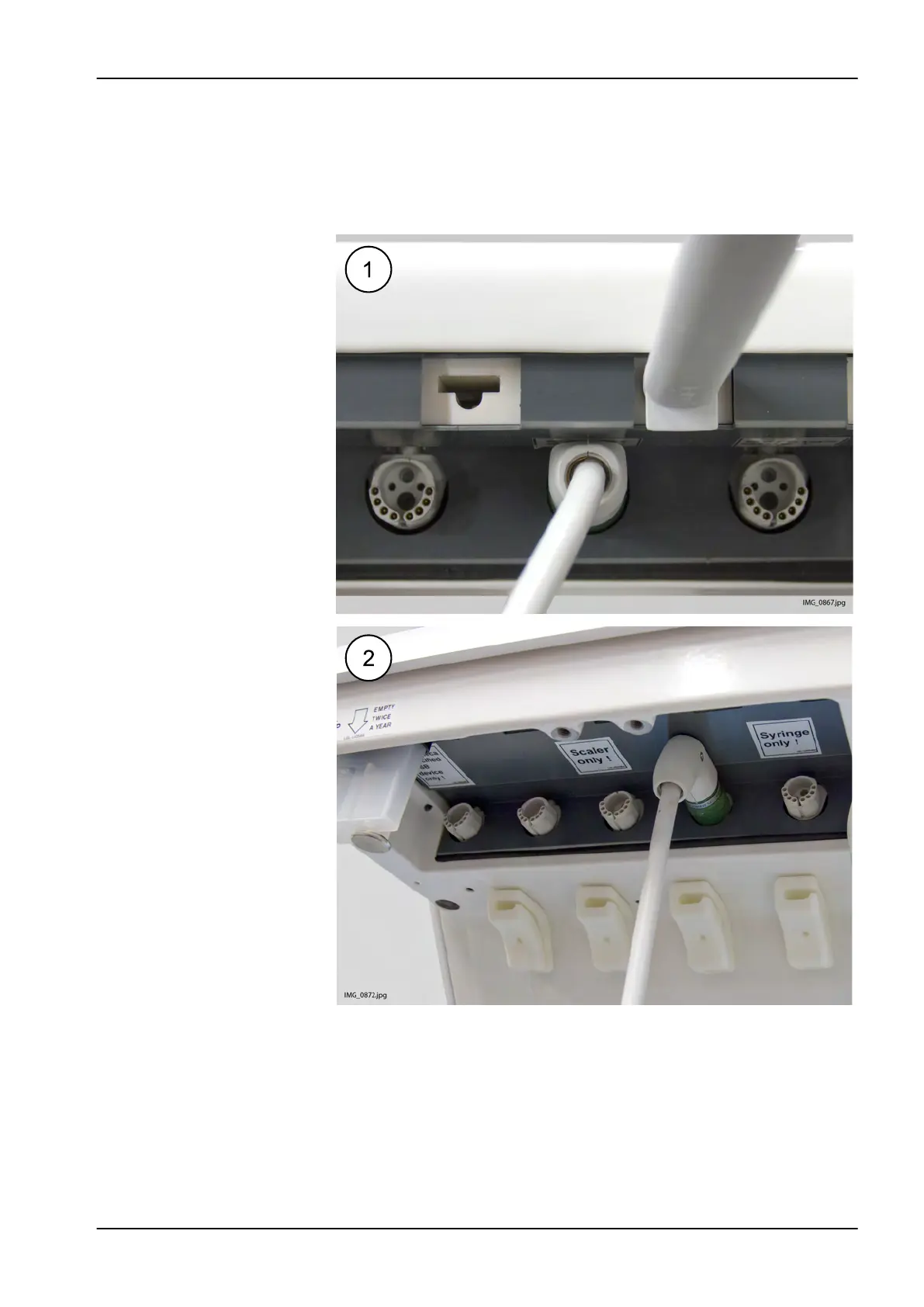

1 Instrument console with balanced instrument arms

2 Instrument console with hanging-tube instruments

16 Installing instruments

Installation manual Planmeca Compact i3 83
