7.3 Installing safety switch
S
teps
1. Place the microswitch assembly (1) to its position and secure it with two
screws ISO7380-1 M4x8 (2).

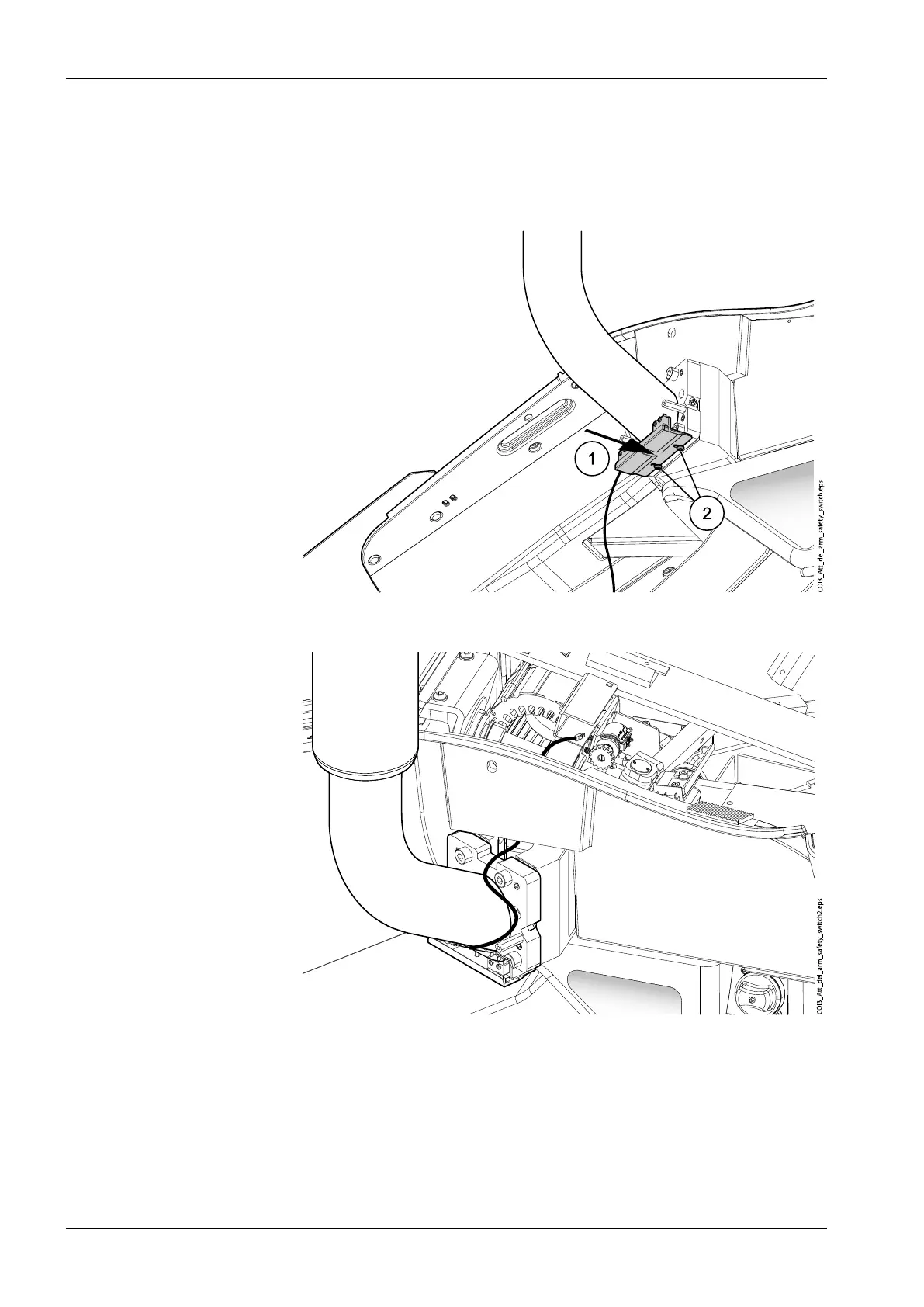

2. Route the microswitch cable into the seat casting as shown on the figure
below.
3. Remove the jumper from the seat microswitch and connect the
microswitch cable to that connector.
7
.4 Attaching covers
Steps
1. Attach the hex spacers to the adapter tube plate.
7 Installing OP delivery arm
32 Planmeca Compact i3 Installation manual
