14.2 Attaching seat upholstery
A
bout this task
NOTE
Screws must be used to secure the seat upholstery.
Steps

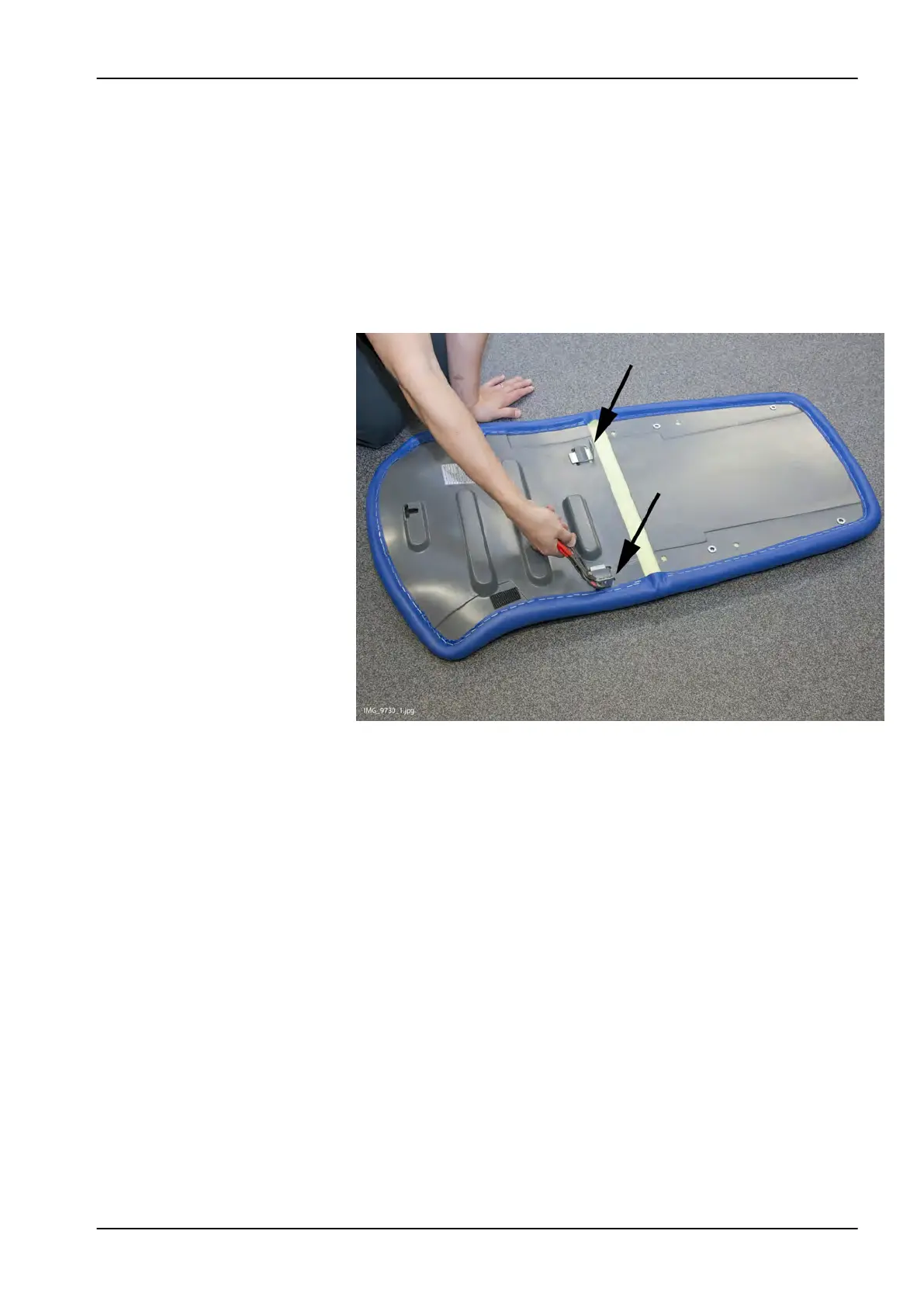

1. Slide the attachment plates to their positions at the seat upholstery
backplate, short end first.
2. Slide the seat upholstery towards the backrest casting in a way that the
attachment screw goes into the groove of the upholstery’s backplate.
NOTE
You can bend the seat upholstery carefully from its sides to make the
attachment easier. If the attachment screw does not go into the groove,
the screw can be slightly opened by turning it clockwise. Make sure that
you have slid the upholstery as far as it goes.
14 Attaching chair upholsteries
Installation manual Planmeca Compact i3 71
