10.1 Adjusting friction of monitor arm joint
R
otational friction

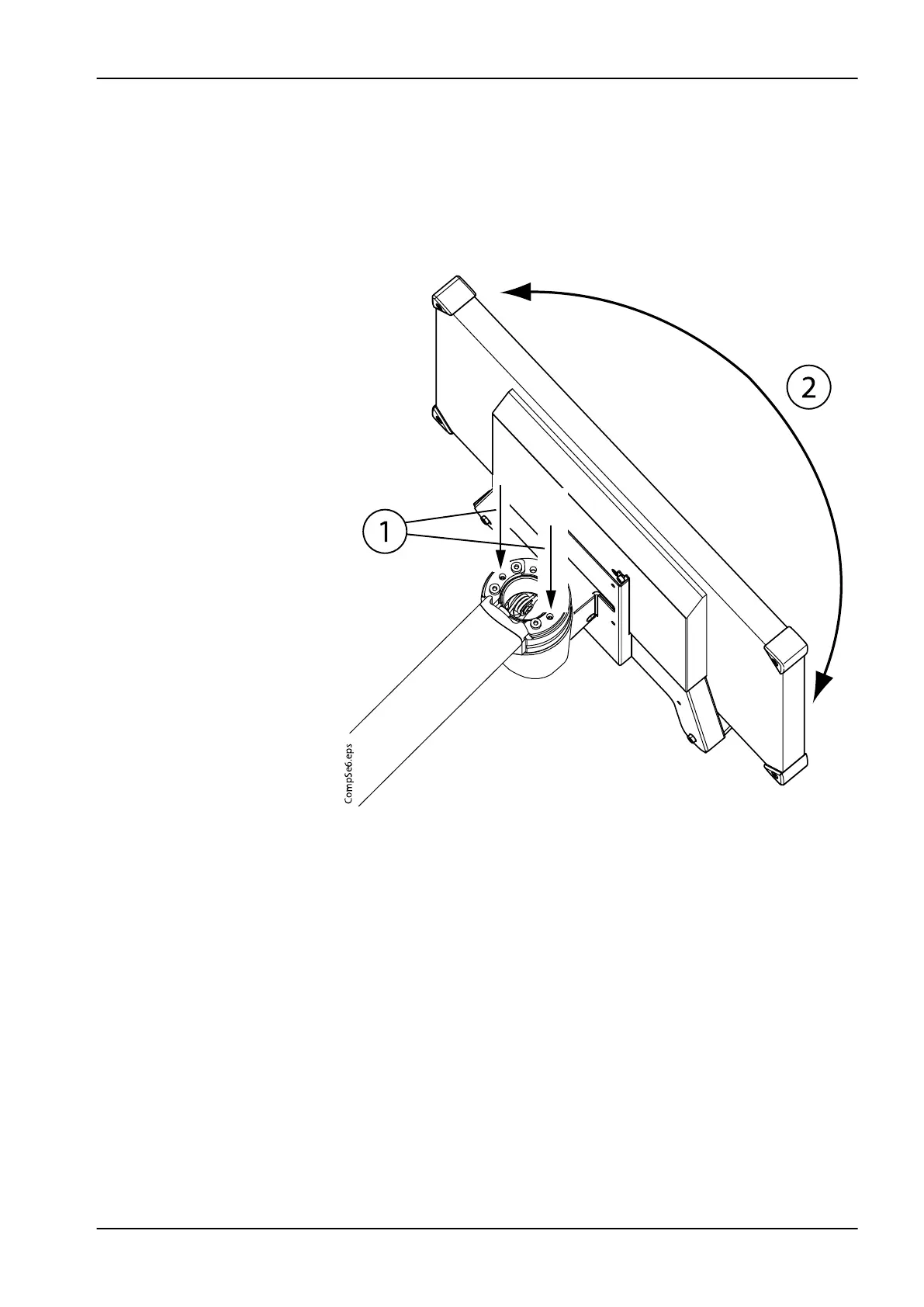

If needed, you can adjust the rotational friction of the monitor arm joint as
shown in the figure below. Adjust the friction of the joint with a 3 mm Allen
key. Adjust the two screws equally (1). Loosening the screw increases the
friction (2).
10 Installing monitor
Installation manual Planmeca Compact i3 57
