Planmeca Compact i3 Installation Manual

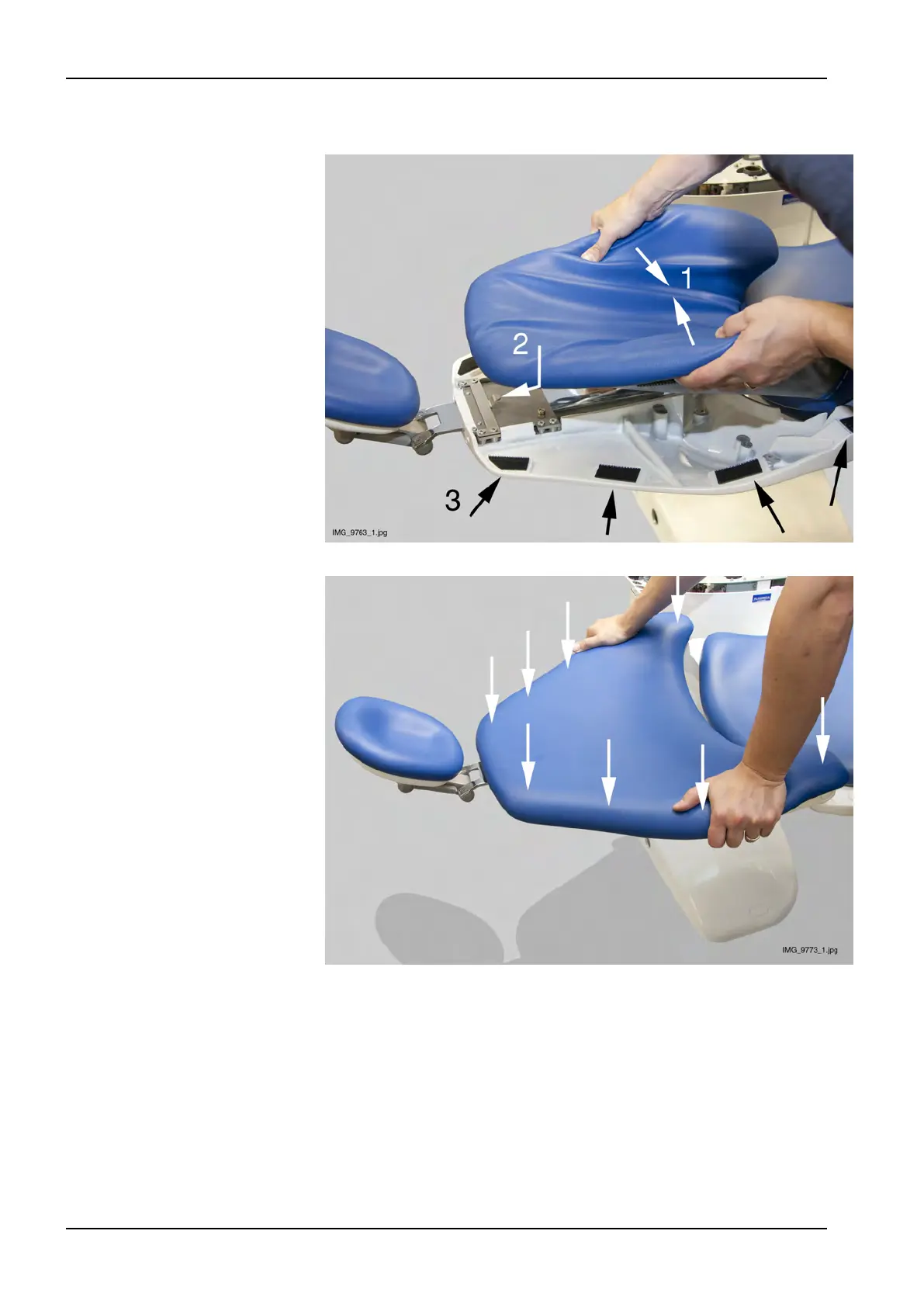

into the groove of the upholstery’s backplate (2). Press the upholstery
against the velcro tape counterparts (3).
2. Firmly press the upholstery outer edges.
14.4 Attaching armrests
Steps
1. Unscrew the armrest plate attachment screw (1) and remove the plate
(2). Attach the armrest plate with an opening (3) to the seat. Place the
armrest attachment pin to the opening on the seat in a position shown in
14 Attaching chair upholsteries
76 Planmeca Compact i3 Installation manual
