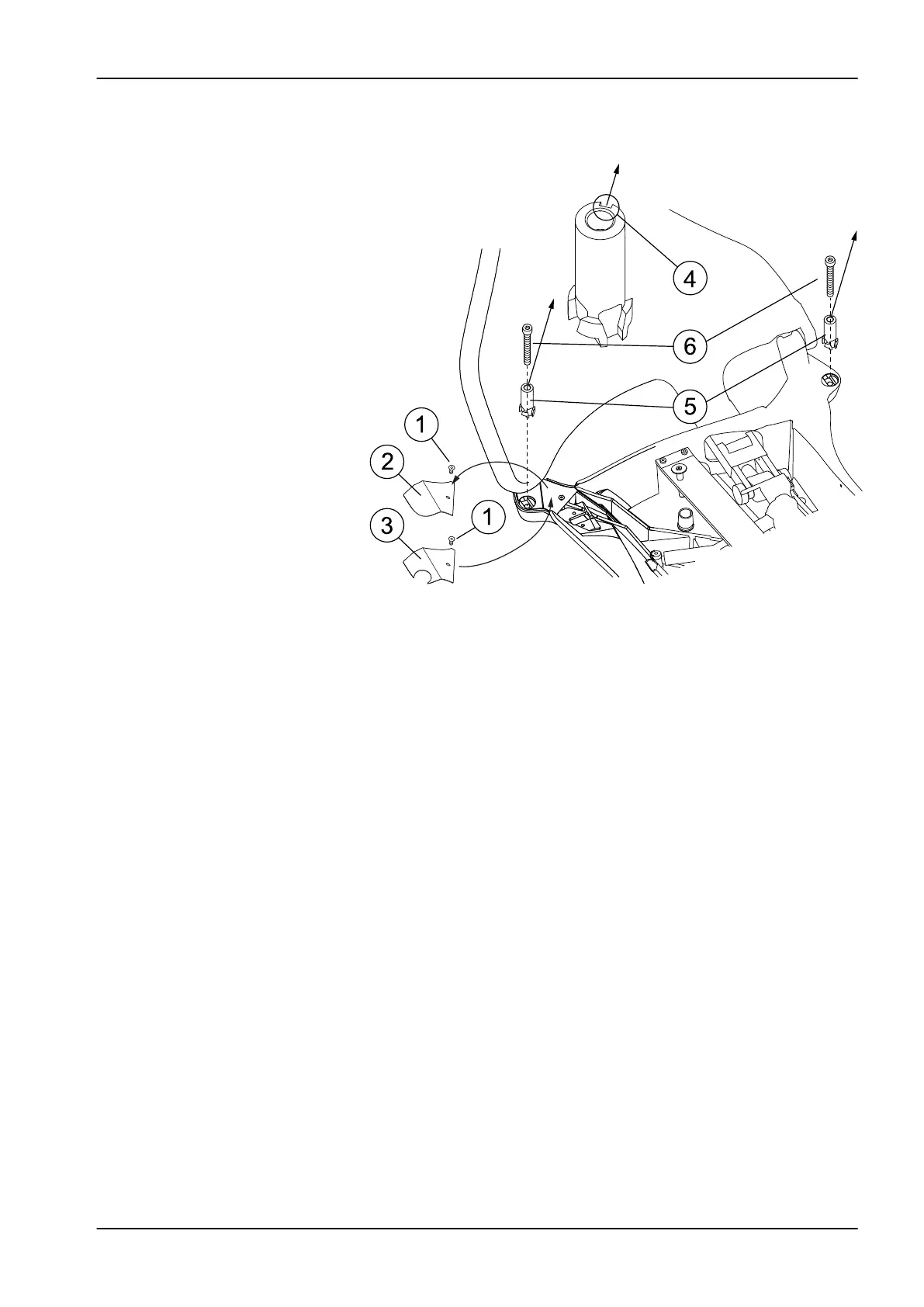

the figure below (4). Attach the pin (5) to the seat with an attachment
screw (6). Tighten the attachment screw with 45 Nm force.
2. Attach the armrest upholstery (7) to the armrest casting (8) with two 2x50
torx screws (9) using TX 25 key. Grease the armrest inner surfaces with
non-toxic vaseline before attaching it to the adapter. Push the armrest to
14 Attaching chair upholsteries
Installation manual Planmeca Compact i3 77
