Planmeca Compact i3 Installation Manual

6 Installing foot control
About this task
The foot control must be connected to the dental unit so that the chair can
be driven out from the transportation position.
Steps

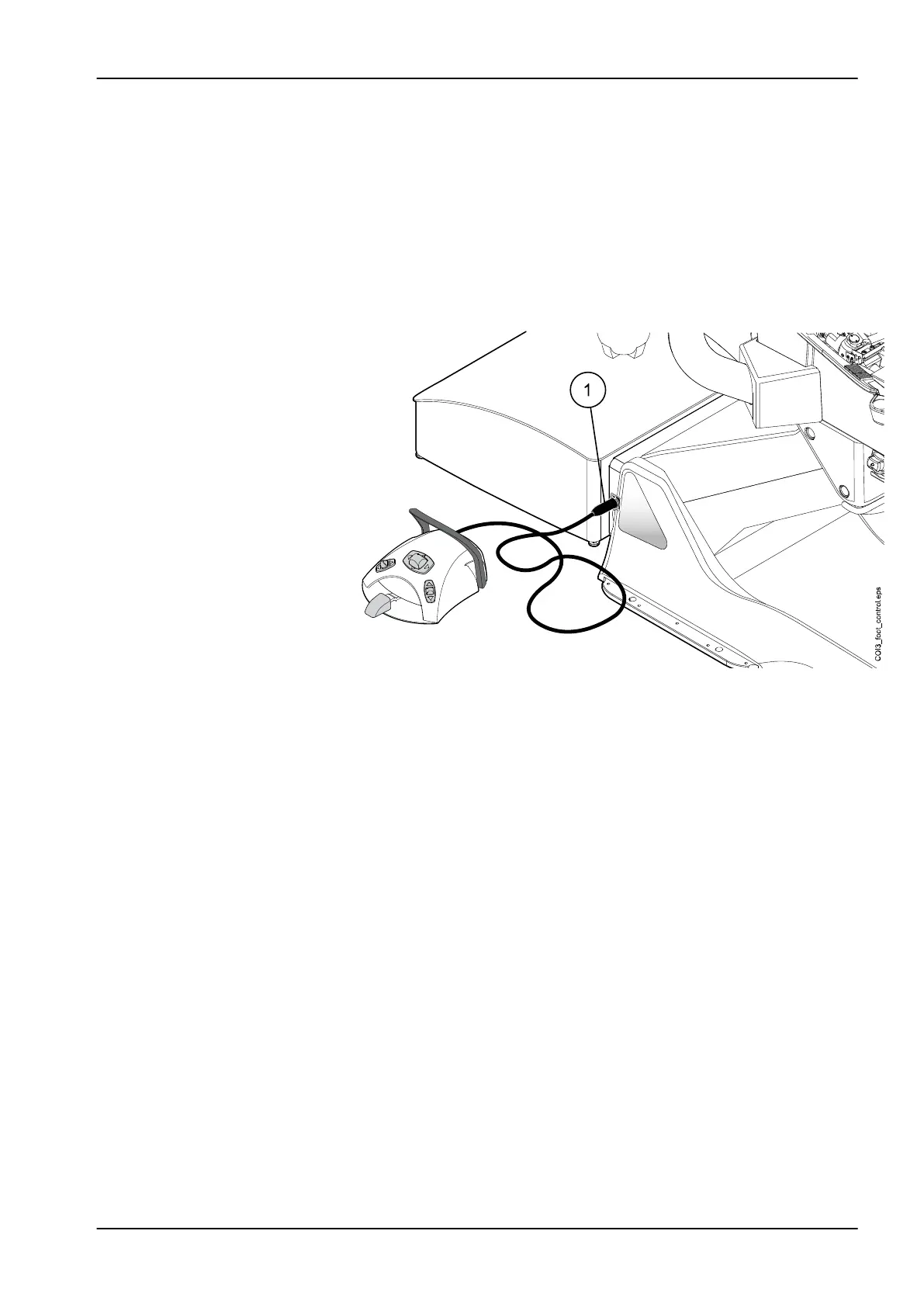

1. Connect the foot control cable to the connector at the junction box side
(1).
2. Switch the power source and the dental unit on.
6 Installing foot control
Installation manual Planmeca Compact i3 21
