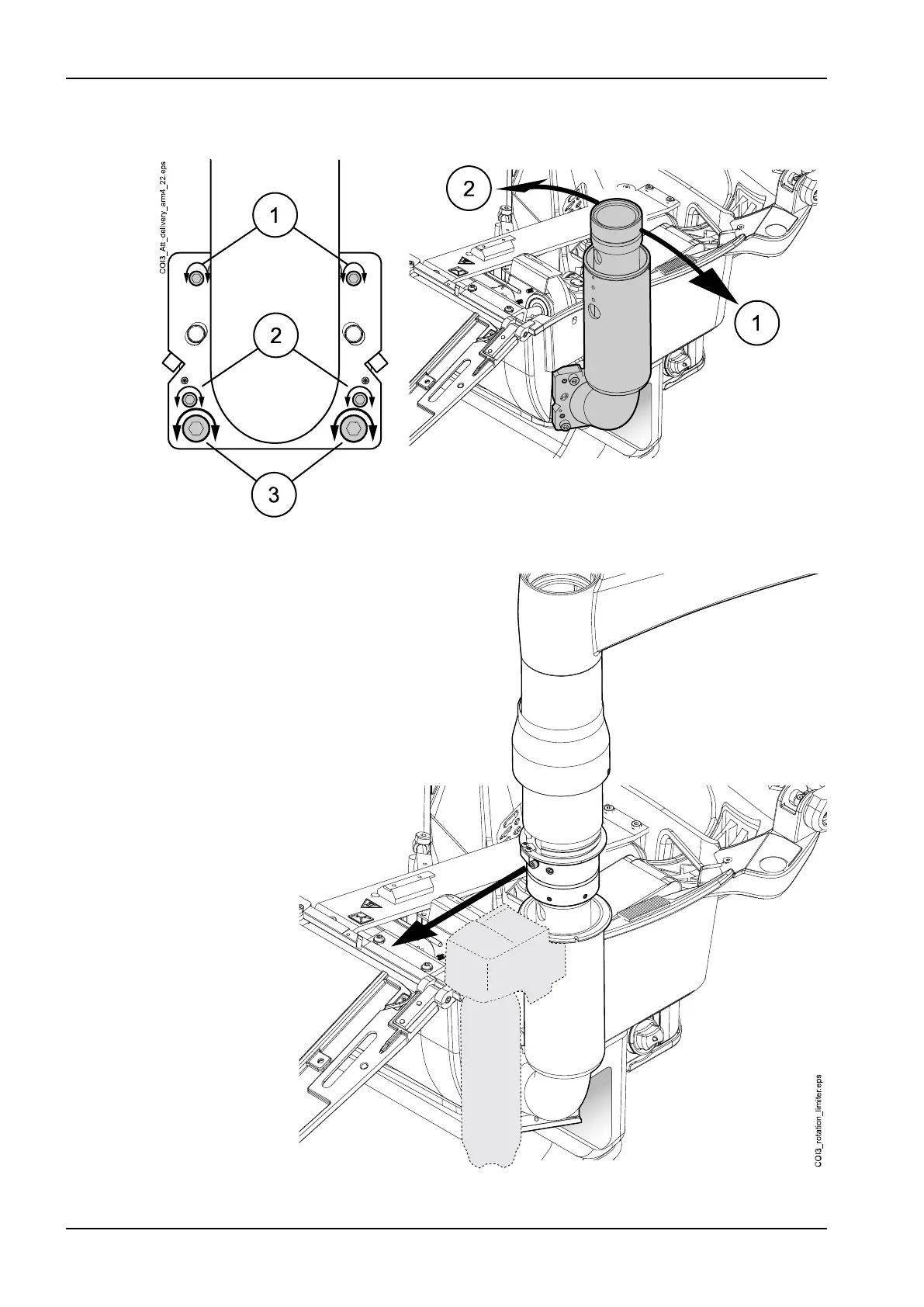

8. Adjust the adapter tube position with the set screws (1 and 2). Tighten

the lower attachment screws (3). Tighten the upper attachment screws.

9. The recommended direction of the rotation limiter screw is shown in the

figure below.

7 Installing OP delivery arm

26 Planmeca Compact i3 Installation manual
