NOTE
Dental units without city water:
Connect only the air tube to the magnetic
valve/ pressure regulator assembly (1).

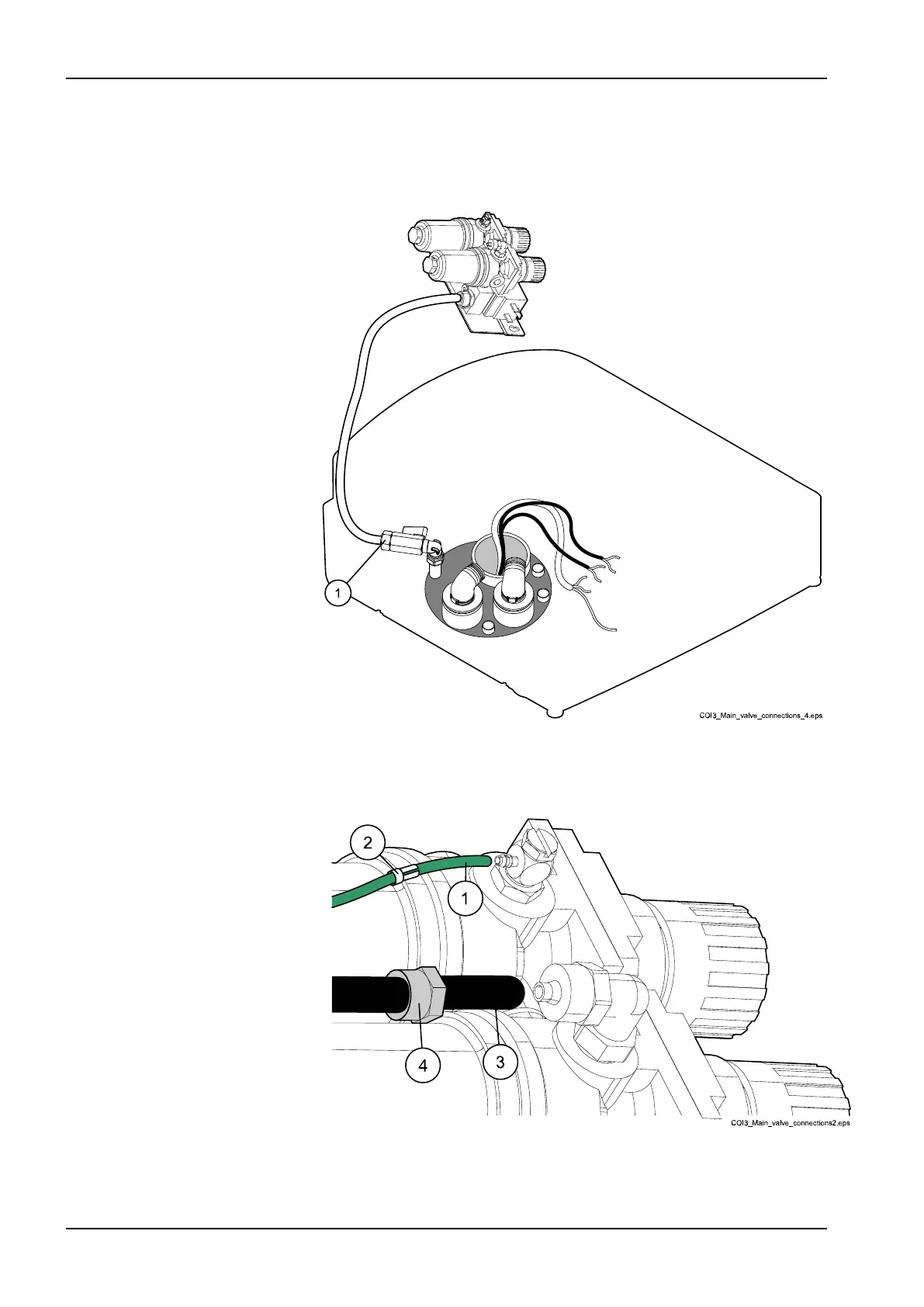

2. Connect the delivery arm water tube to the nipple at the magnetic valve/
pressure regulator assembly (1). Secure the water tube with the tube
clamp (2). Connect the air tube to the nipple in the front of the air
pressure regulator (3). Secure the air tube (4).
7 Installing OP delivery arm
36 Planmeca Compact i3 Installation manual
