Planmeca Compact i3 Installation Manual

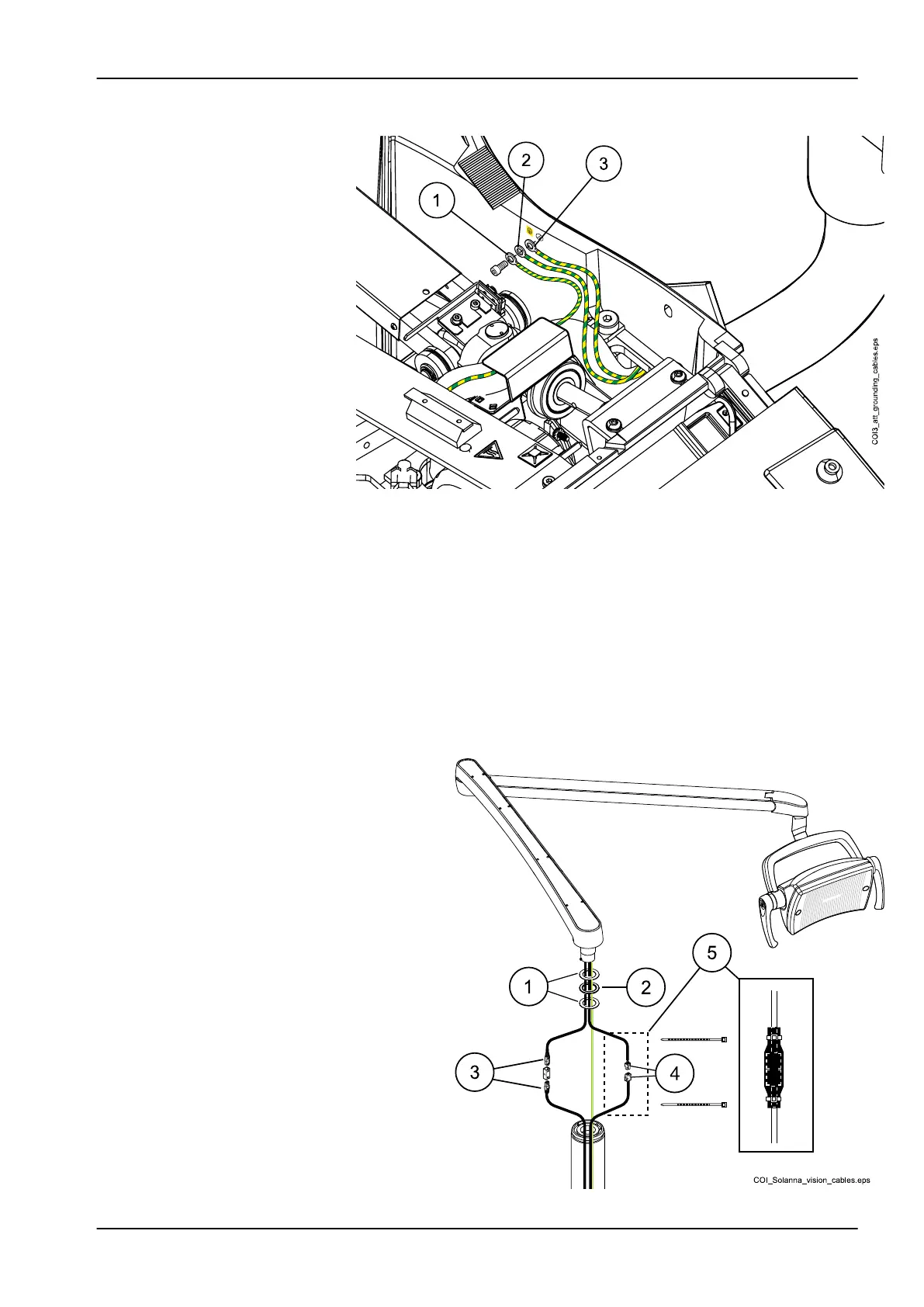

15. Attach the grounding cables to the grounding point inside of the seat.
1 OP delivery arm
2 Monitor
3 Operating light
16. Inside the seat, secure the cables coming from the vertical post of the
delivery arm with two cable ties close to the position sensor.
17. Operating light:
The sliding rings (1) and the bearing frame (2) must be
located as shown below. Planmeca Solanna Vision: Connect the
ethernet cables from the operating light and from the PC to the RJ45
coupler (3). Connect the cable from the operating light to the cable
coming from the vertical arm (4), slide an insulator over the connectors
and tighten both ends with cable ties. Then, mount the operating light to
the vertical arm (5).
9 Installing vertical arm
Installation manual Planmeca Compact i3 51
