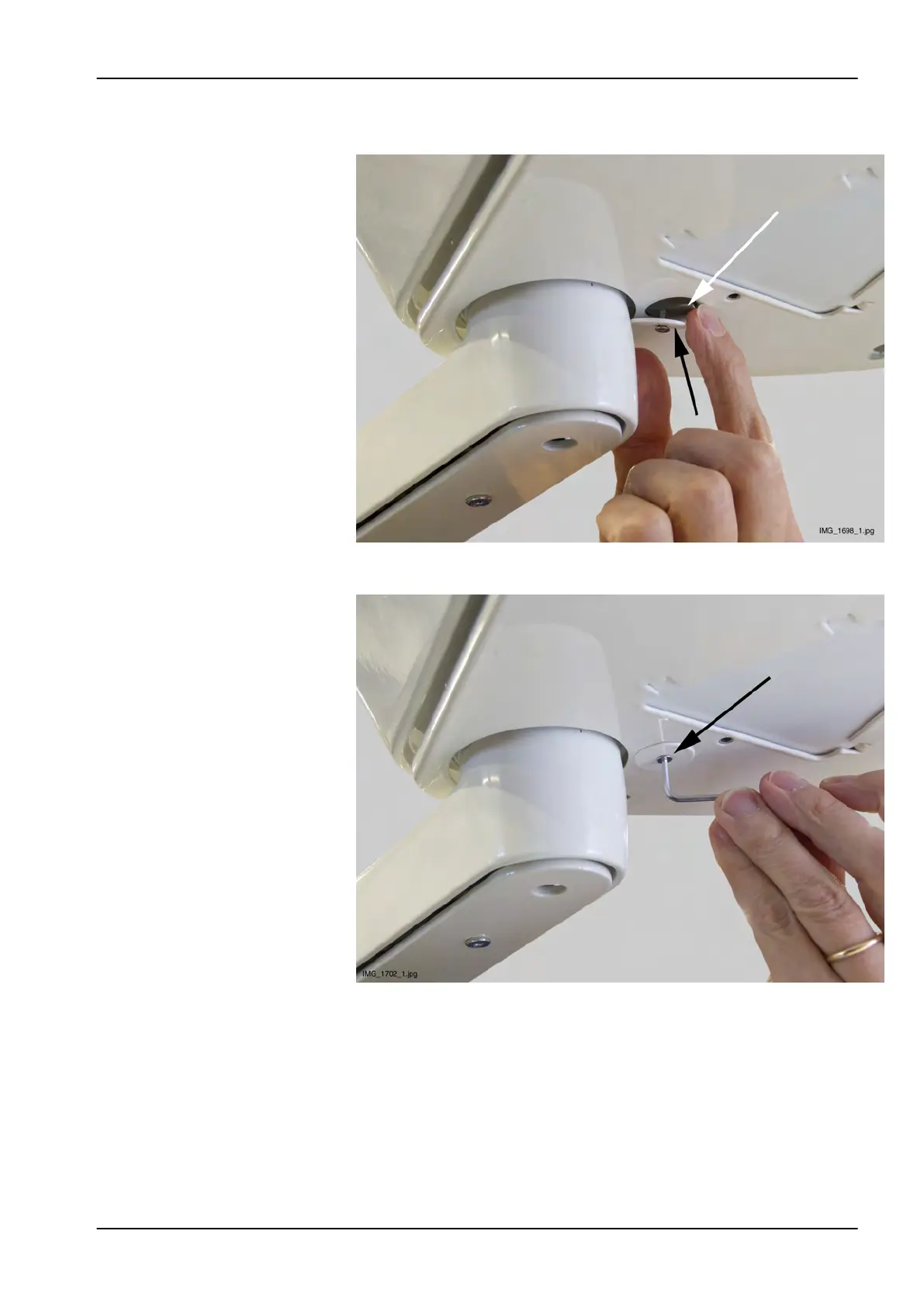

4. Place the installation plate (white arrow) and the upholstery screw hole
cover plate (black arrow) to the seat hole as shown in the figure below.
5. Attach the cover plate to its position with an attachment screw using a 2
mm Allen key.
14 Attaching chair upholsteries
Installation manual Planmeca Compact i3 73
