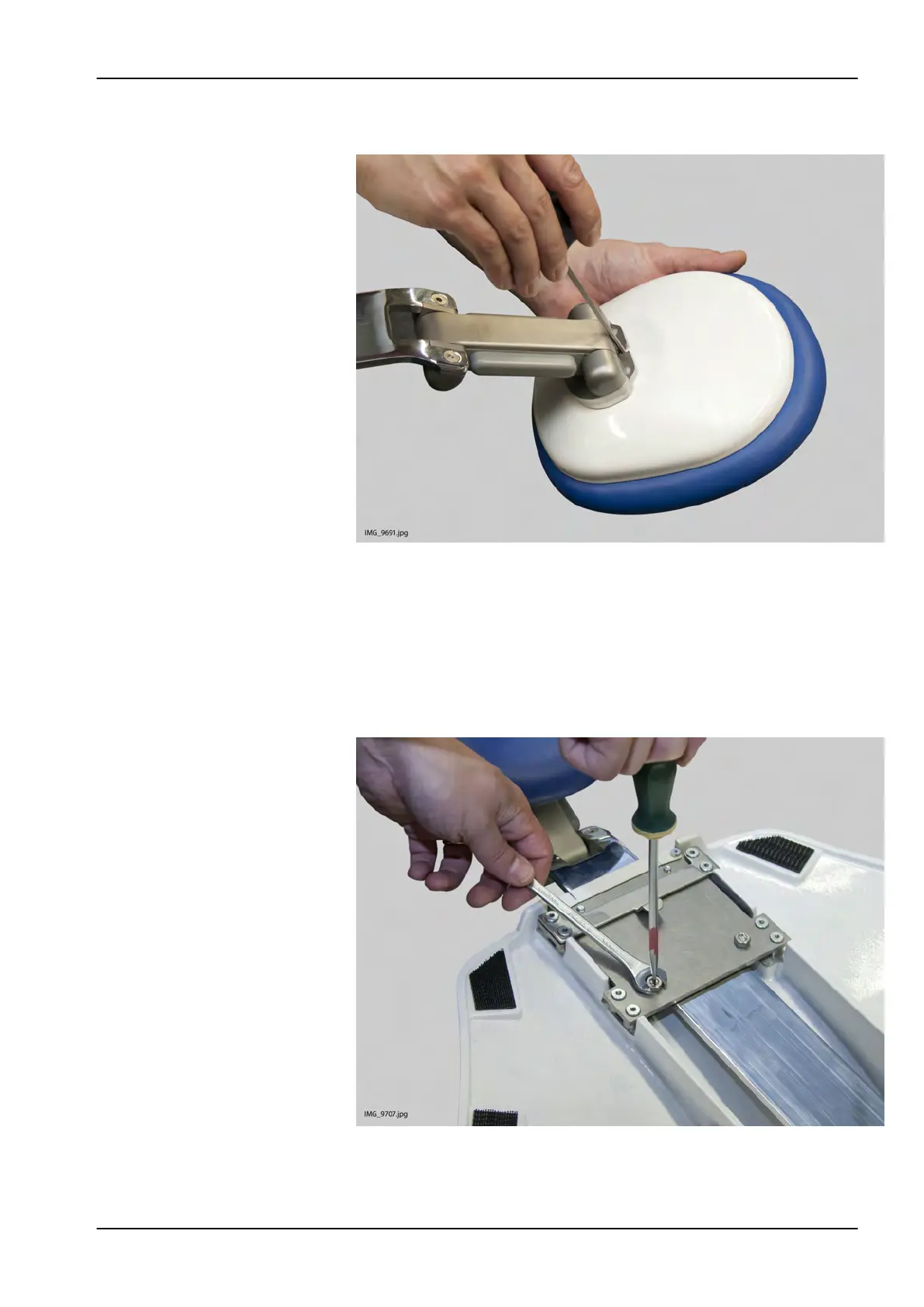

2. Place the headrest upholstery on the headrest casting. Secure it into
position by tightening the screw on the back of the headrest casting.
3. Slide the headrest arm inside the backrest.
The headrest sliding friction is adjusted at the factory. If you want to
change the friction, it can be done as follows.
1.
Loosen the two holding nuts using the 10 mm fork spanner.
2. Adjust the sliding friction by turning the attachment screws using a
screwdriver. Turning the screw counter-clockwise increases the
friction.
3. Lock the screw into position with the holding nut.
14 Attaching chair upholsteries
Installation manual Planmeca Compact i3 79
