Planmeca ProX Technical Manual

10 PARTS REPLACEMENT & REPAIR
Technical manual Planmeca ProX 49
10.4 Replacing tube head
1. Disconnect the X-ray unit from the mains or switch off the power supply.
2. Remove the tube head covers as described in section 10.2 “Removing tube head covers”
on page 46.

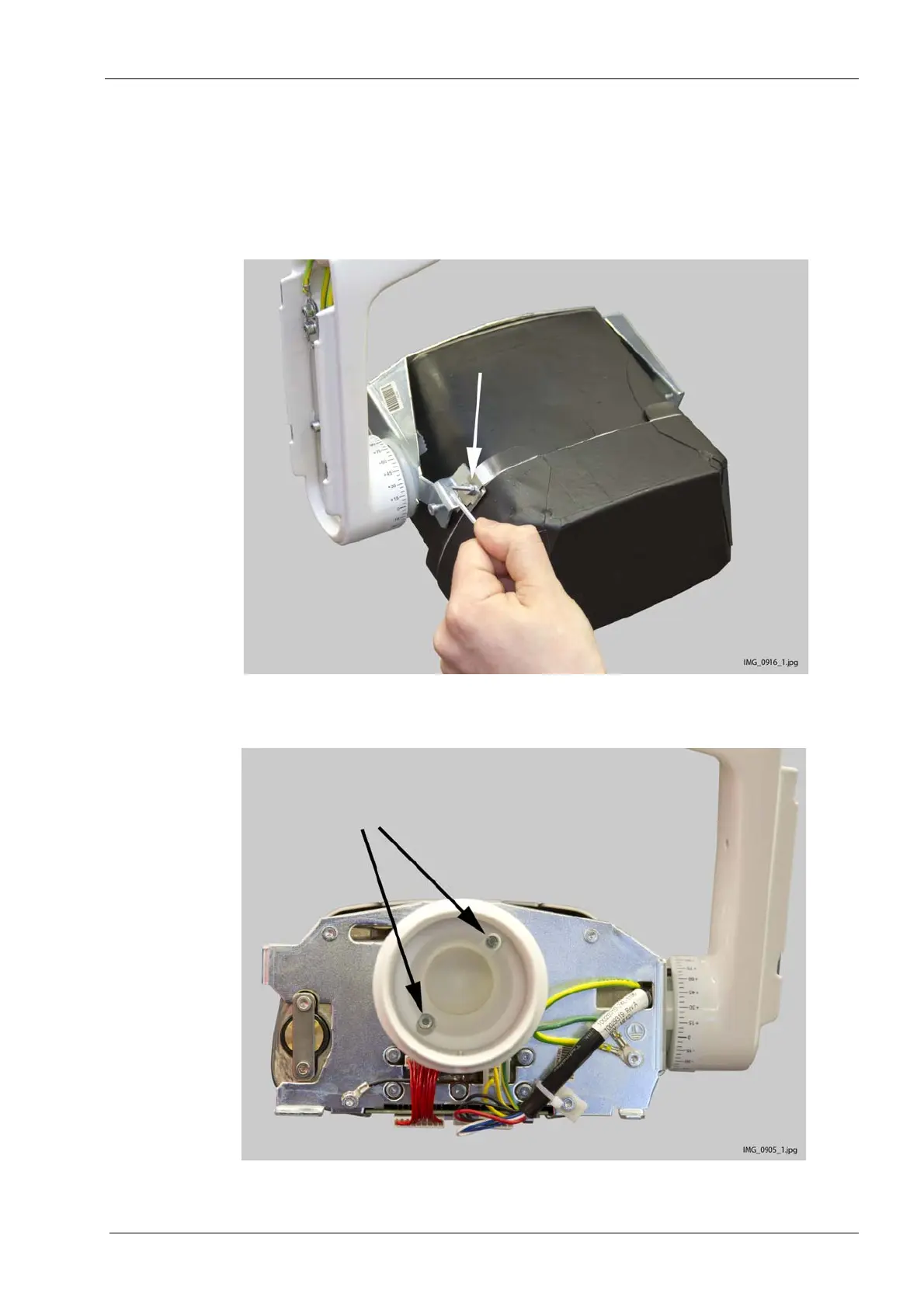

3. Unscrew the attachment screw of the protective lead using a 2.5 mm Allen key and
remove the lead.
4. Unscrew two collimator attachment screws using a 2.5 mm Allen key and remove the
collimator.

Planmeca ProX Specifications

General

Type	Intraoral X-ray
Tube current	7 mA
Imaging Technology	Digital
Focal spot	0.4 mm
X-ray generator	High-frequency
Power Requirements	100–240 V AC, 50/60 Hz
Tube voltage	60-70 kV
