9 MECHANICAL ADJUSTMENTS
Technical manual Planmeca ProX 41
9 MECHANICAL ADJUSTMENTS
CAUTION
Switch off the X-ray unit before adjustments.
9.1 Adjusting balance of arm

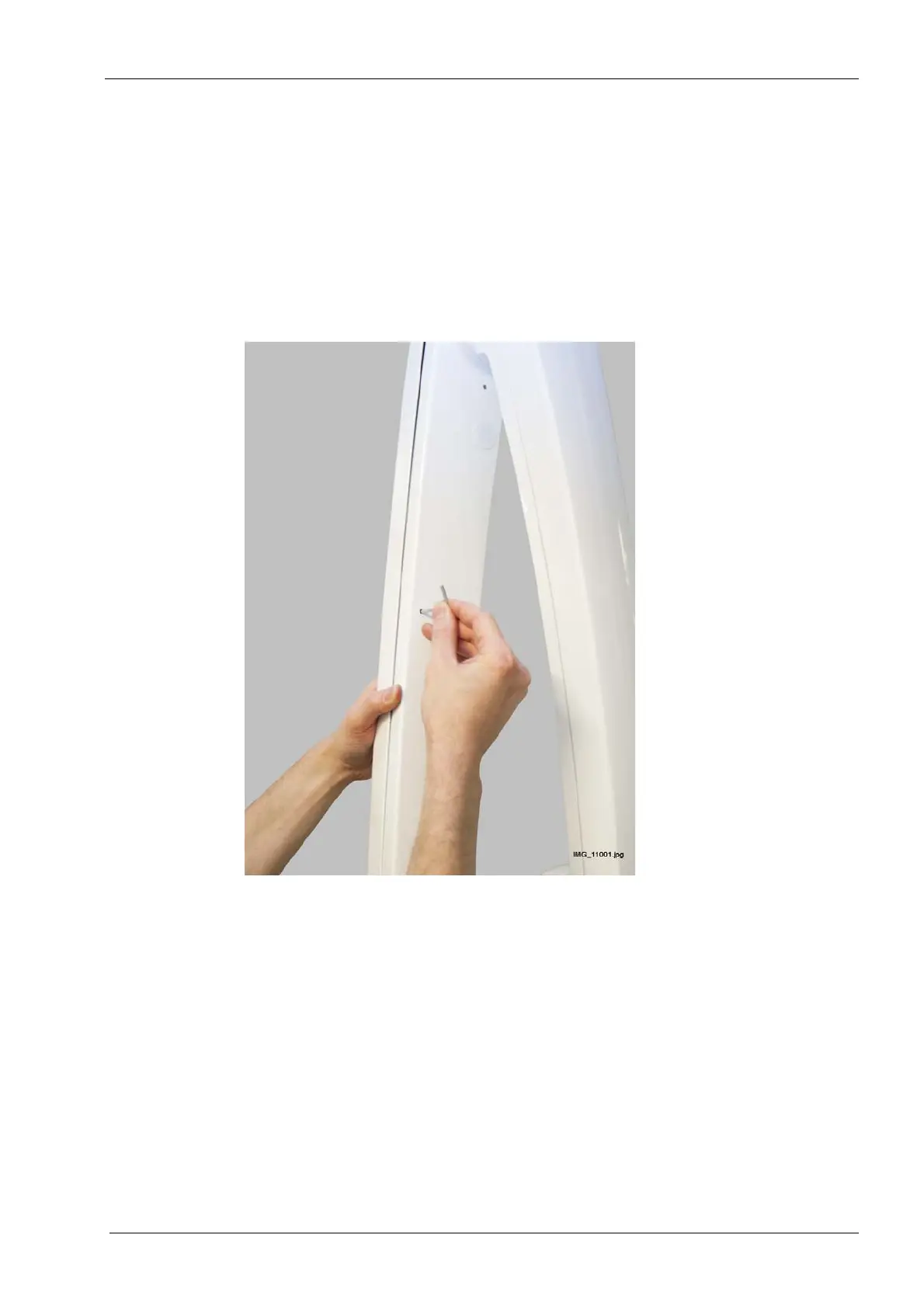

Remove the cover plugs from the screw openings. Loosen three arm cover attachment
screws using a 3mm Allen key. Remove the cover. Remove also the cover of the other
arm.

Table of Contents

Other manuals for Planmeca ProX

Preview: Maintenance Guide
Maintenance Guide6 pages
Preview: User Manual
User Manual64 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Planmeca ProX and is the answer not in the manual?

Planmeca ProX Specifications

General IconGeneral
TypeIntraoral X-ray
Tube current7 mA
Imaging TechnologyDigital
Focal spot0.4 mm
X-ray generatorHigh-frequency
Power Requirements100–240 V AC, 50/60 Hz
Tube voltage60-70 kV
